Steel Anti-Climb Barrier System.
CODE:

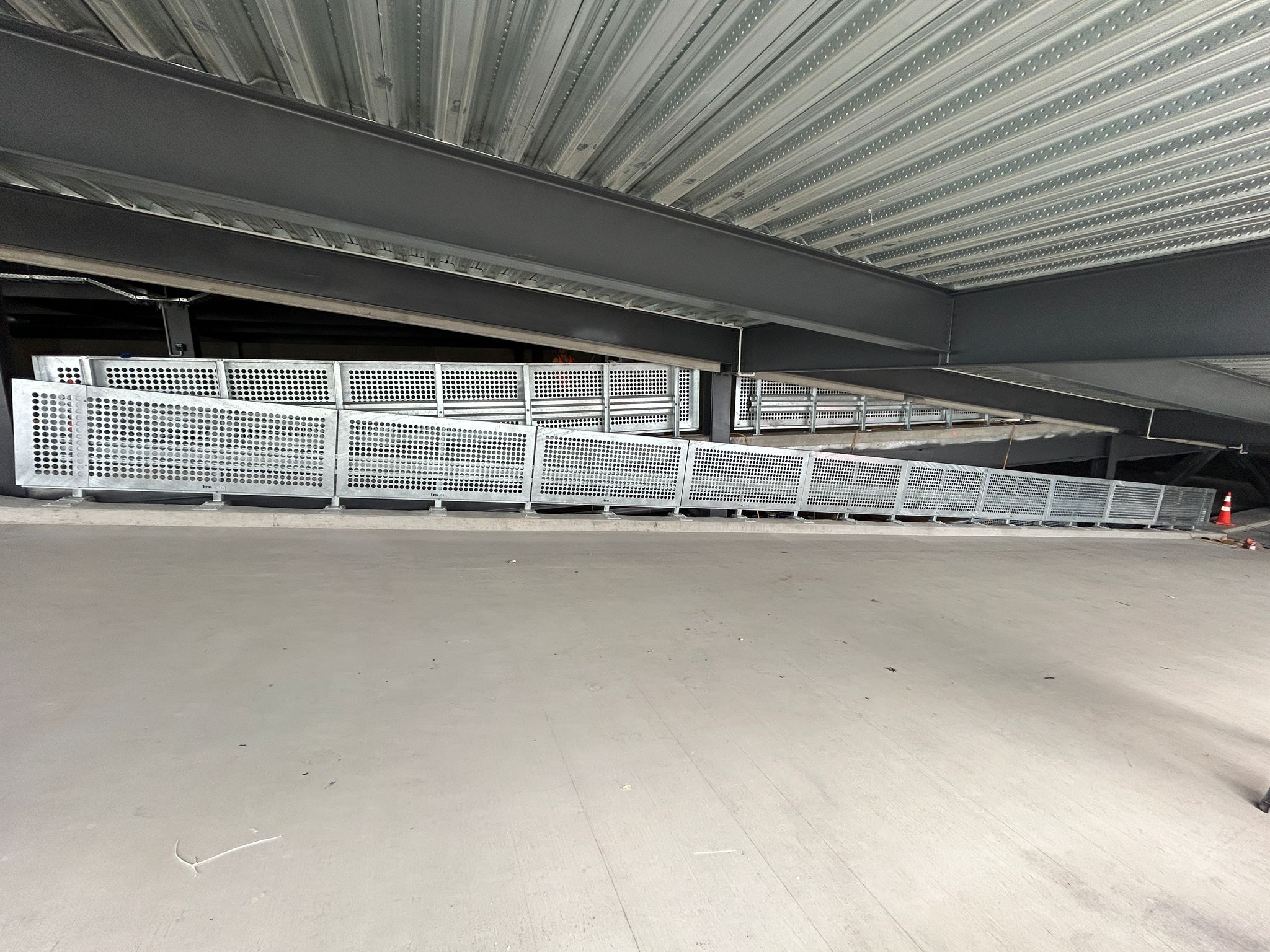

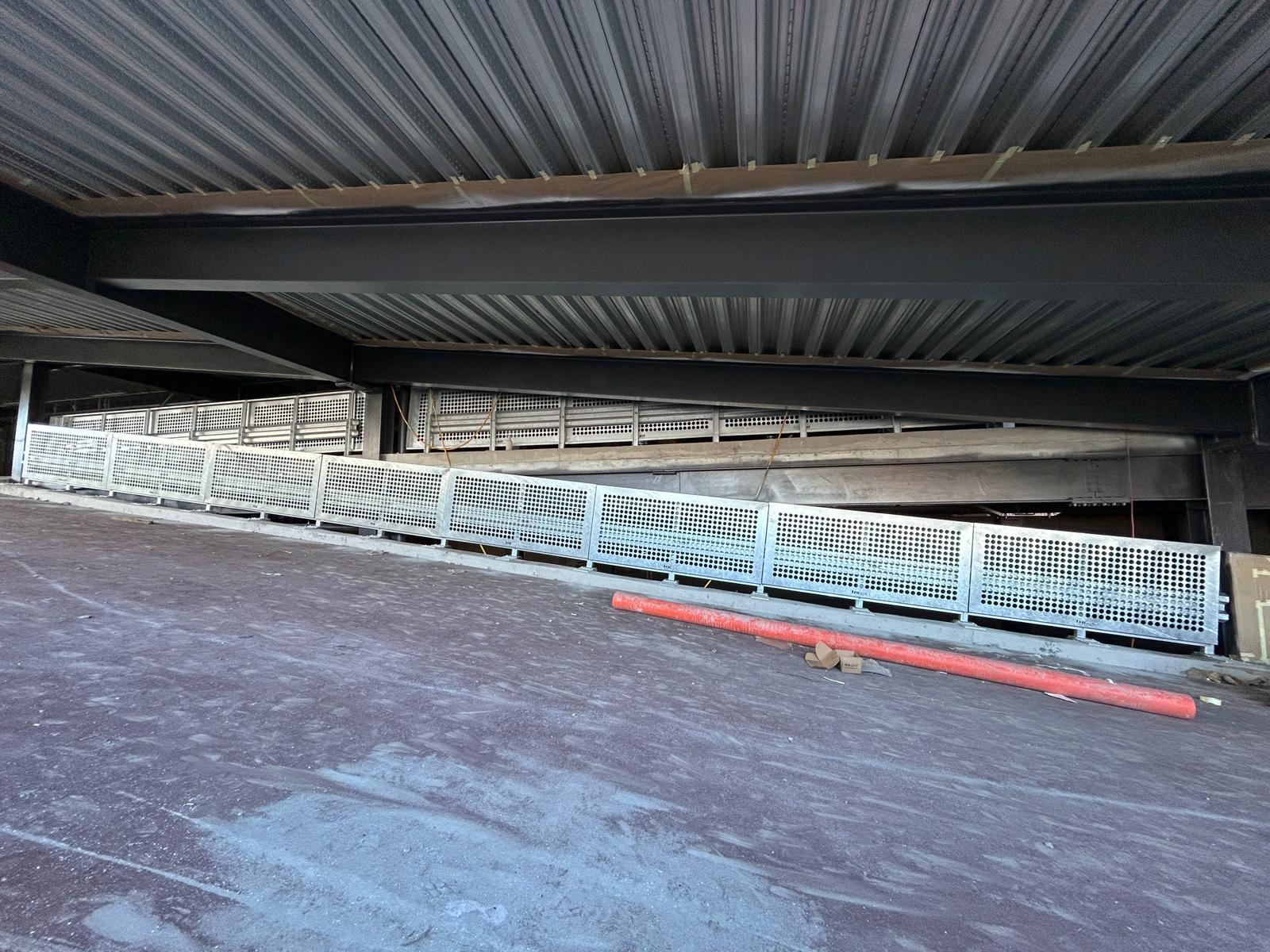

Steel Anti-Climb Barrier is a modular barrier system incorporating a vehicle impact-rated barrier and an anti-climb fence, engineered to be compliant with New Zealand’s carpark safety barrier standards.
Hot dip galvanised finish for use in any environment – safety yellow components available by request.
Anti-climb screens are fabricated from 2mm steel sheets, creating a non-grip surface with 48mm aeration and visibility slots compliant with anti-climb building codes.
Compliant with:
- AS/NZS 1170.1 Section 3.8. (Certification available by request).
- B1 Guidance on Barrier Design
- F4 Safety from Falling
- Rated to stop a 40kN impact
Options
Spec Sheets
Options
Code
Description
Size (mm)
Finish
Fixings (incl)
2710-001
Anti-Climb Barrier - Mesh Panel
1000(H)
Galvanised
3 x M8x20mm Coachbolts; 3 x 14Gx22mm Tek Screws
2710-003
Anti-Climb Barrier - Half Mesh Panel
1000(H)
Galvanised
3 x 14Gx22mm Tek Screws
2710-002
Anti-Climb Barrier - Support Post
1110(H)
Galvanised
2 x M12x100mm Bolts
2710-004
Anti-Climb Barrier - Adjustable End Caps Pair (L/R)
512(W) x 1000(H)
Galvanised
2 x M8x20mm Coachbolts; 6 x 14Gx22mm Tek Screws
Spec Sheets
