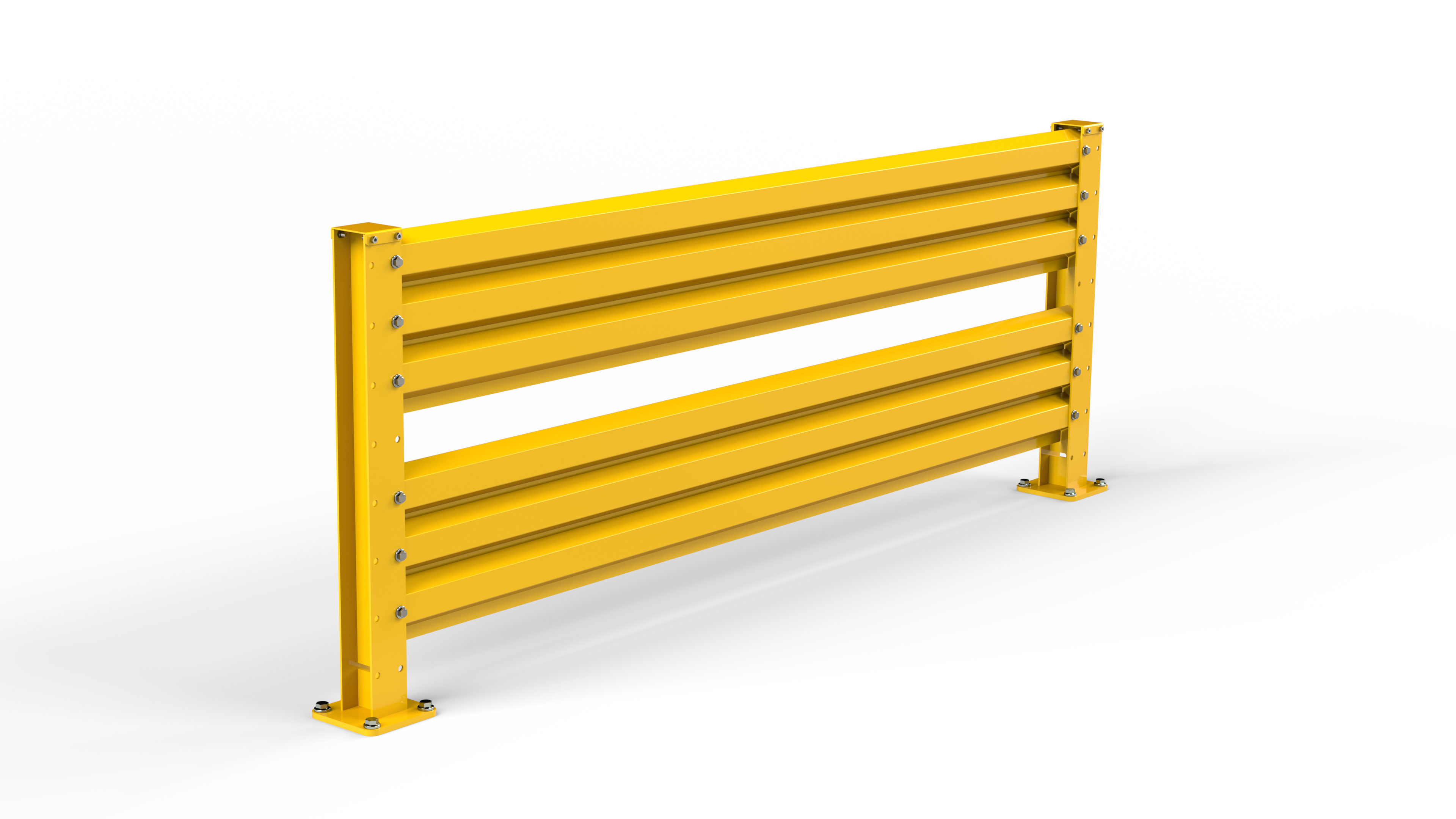

ForkSafe 950-A.
CODE:
ForkSafe 950-A is our most popular walkway protection barrier designed to protect pedestrians from forklift and light truck impacts up to 11.75 kJ.
The 950-A offers higher-level protection with a double steel barrier rail mounted at 950mm, making it suitable for protecting pedestrian walkways as well as asset protection.
The extra height helps improve visibility and ensures pedestrian walkways are protected from forklift activity.
ForkSafe Steel Barriers protect people, equipment, and infrastructure in high-traffic forklift zones.
Engineered for impact resistance, this certified modular system safeguards buildings, assets, and personnel from damage or injury caused by forklifts and other vehicles.
Key Features
- Crumple Zone Technology (CZT) reduces floor damage on impact
- Fully modular for easy customisation – easy to cut, install, expand, and replace parts
- High-strength steel construction for forklift and MHE zones
- Replaceable posts and rails for easy maintenance
- Supplied with screw anchors for fast and secure installation
- Suitable for forklifts, reach trucks, and pallet trolleys
- Backed by a 10 Year Warranty
Testing & Certification
- Impact simulation tested — stops 7T at 6.6 km/h
- Impact resistance: 11.75 kJ
- Meets AS/NZS 1170.1 Section 3.8 — Type F 30kN and Type G 40kN
- Tested in compliance with PAS13 (certification available on request)
Technical Specifications
- Height: 950mm
- Number of Rails Per Bay: 2 sets (1 set = 3 rails)
- Rail Lengths: 1200mm, 2400mm
- Finish: Galvanised with yellow powder coat finish
- Post Material: Steel – 5mm and 8mm wall thickness
- Rail Material: Steel – 2mm wall thickness
- Connector: M12 x 30mm 8.8 high tensile bolt
- Fixings: M12 x 100mm concrete screw bolts (4 per post, supplied)
- Post Size: 90 x 90mm ‘I’ beam type section
- Base Plate: 180 x 180mm square, 12mm thick, 4 x Ø16mm anchor holes
- Cap: Yellow HDPE clip-on cap
