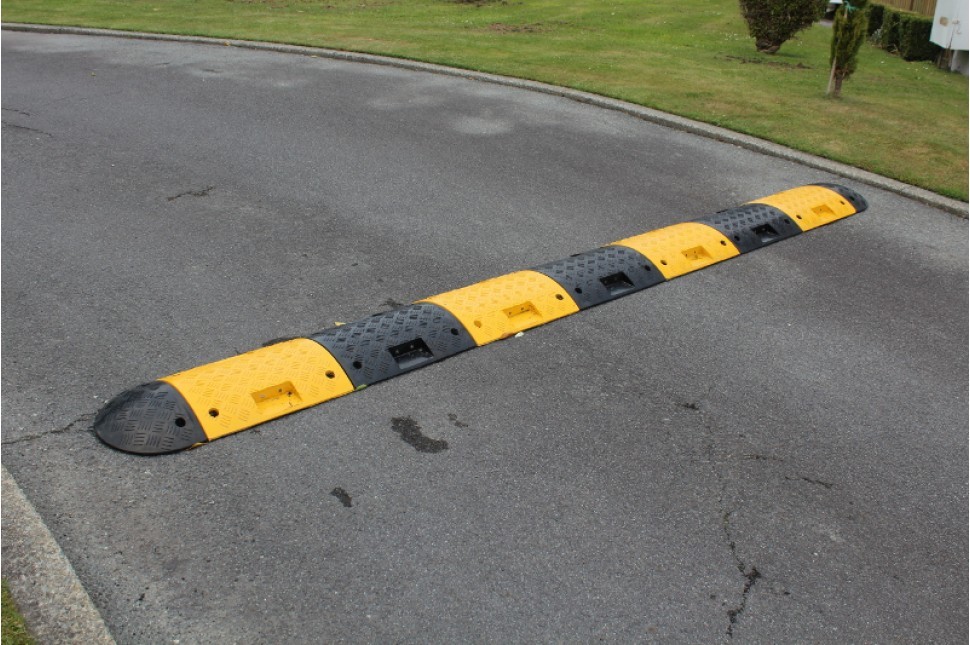

Interlocking Rubber Speed Hump - 75mm High.

CODE:

Our 75mm-high Interlocking Rubber Speed Hump is a very abrupt bump to slow cars and other light vehicles to less than 5km/h (a near stop).

Primarily used at Give way/Stop intersections, blind corners, or where vehicle paths that cross footpaths.

More info

For a less abrupt option to slow vehicles to 10-20km/h, check out our 50mm High version.

For heavy vehicles such as trucks and buses, we recommend using our rubber Speed Cushions.

Key Features

  • Tongue-and-groove interlocking rubber modules for increased strength and fast installation
  • Fully modular design to build the desired length for your situation
  • In-built reflective cat’s eyes to enhance visibility at night
  • Anti-skid design, heavy duty recycled rubber
  • Can be relocated if required
  • 3 fastener types available depending on your application (see options below)

Technical Specifications

  • Material: Heavy duty recycled rubber
  • Colours: Modules available in both black and yellow
  • Centre Modules: 500(W) x 400(L) x 75(H)mm

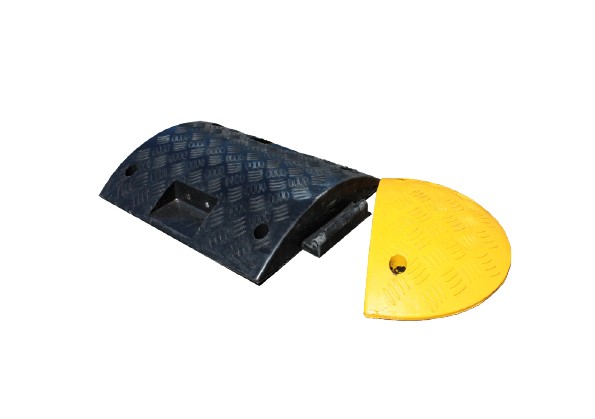

  • End Caps: 250(W) x 400(L) x 75(H)mm

How Sizing Works

Width is the direction extending across the road (kerb to kerb), whereas length is the distance the vehicle travels over the hump (front wheel to back wheel).

Because centre modules are 500mm wide and end caps are 200mm wide, exact 1m lengths cannot be achieved i.e., if your desired width is 2m, the closest achievable width is 1.9m (3 x 500mm centre modules and 2 x 200mm end caps).

If you have any questions about choosing your desired width, please enquire below and our team will be more than happy to assist.

Options
Videos
Spec Sheets
Options
Code
Description
Size (mm)
Colour
2412-009
Speed Hump Centre Module
500(W) x 400(L) x 75(H)
Black
2412-012
Speed Hump Centre Module
500(W) x 400(L) x 75(H)
Yellow
2412-010
Speed Hump End Cap
250(W) x 400(L) x 75(H)
Black
2412-011
Speed Hump End Cap
250(W) x 400(L) x 75(H)
Yellow
1911-063
Bitumen Fasteners (4 per centre, 2 per end)
M14 x 75mm - C/Screw & Plug
1911-035
Concrete Fasteners (4 per centre, 2 per end)
M10 x 75mm Anka Screw
1911-045
Chipseal/Unsealed Fasteners (4 per centre, 2 per end)
M12 x 200mm Long Rebar Spike
Videos
spacer


75mm High Interlocking Rubber Speed Hump | Overview

spacer


50mm vs 75mm Speed Humps – How do I choose?

spacer


Speed Humps vs Cushions vs Cushion Pads – What’s the difference?

spacer


Speed Calmers | Range Overview

Spec Sheets
Title
Size
Download
Speed Hump 75mm Spec Sheet.pdf
335kB
Download
Vanguard-Speed-Hump-Installation-Guide-Copy.pdf
2.5MB
Download
Vanguard-Group-Catalogue-Page-83-Interlocking-Rubber-Speed-Hump-75mm-high
76kB
Download

FAQs.

What are the common uses for this product?

Ideal for safely slowing traffic in a driveway or carpark. The 75mm high option is quite abrubt, and is designed to bring vehicles almost to a stop

What are the advantages of using 75mm Interlocking Rubber Speed Hump?

The interlocking modular so can fit any width driveway, and can be removed if desired. Being interlocking gives it strength

What is the difference between using the 50mm high and the 75mm high Speed Hump?

The 75mm high option is quite abrubt, and is designed to bring vehicles almost to a stop

What surfaces are these suitable for?

These can be fitted to concrete and asphalt. For asphalt surfaces where trucks are common, we recommend our speed cushion option

What is the width and the length of the module?

Each module is 500mm wide x 400mm long. End caps are 250mm wide.

Vehicles this can handle/best suited for?

This option is ideal for cars and lighter vehicles. Where trucks are common, we recommend our speed cushion.
