RhinoStop® Single Guardrail.
CODE:

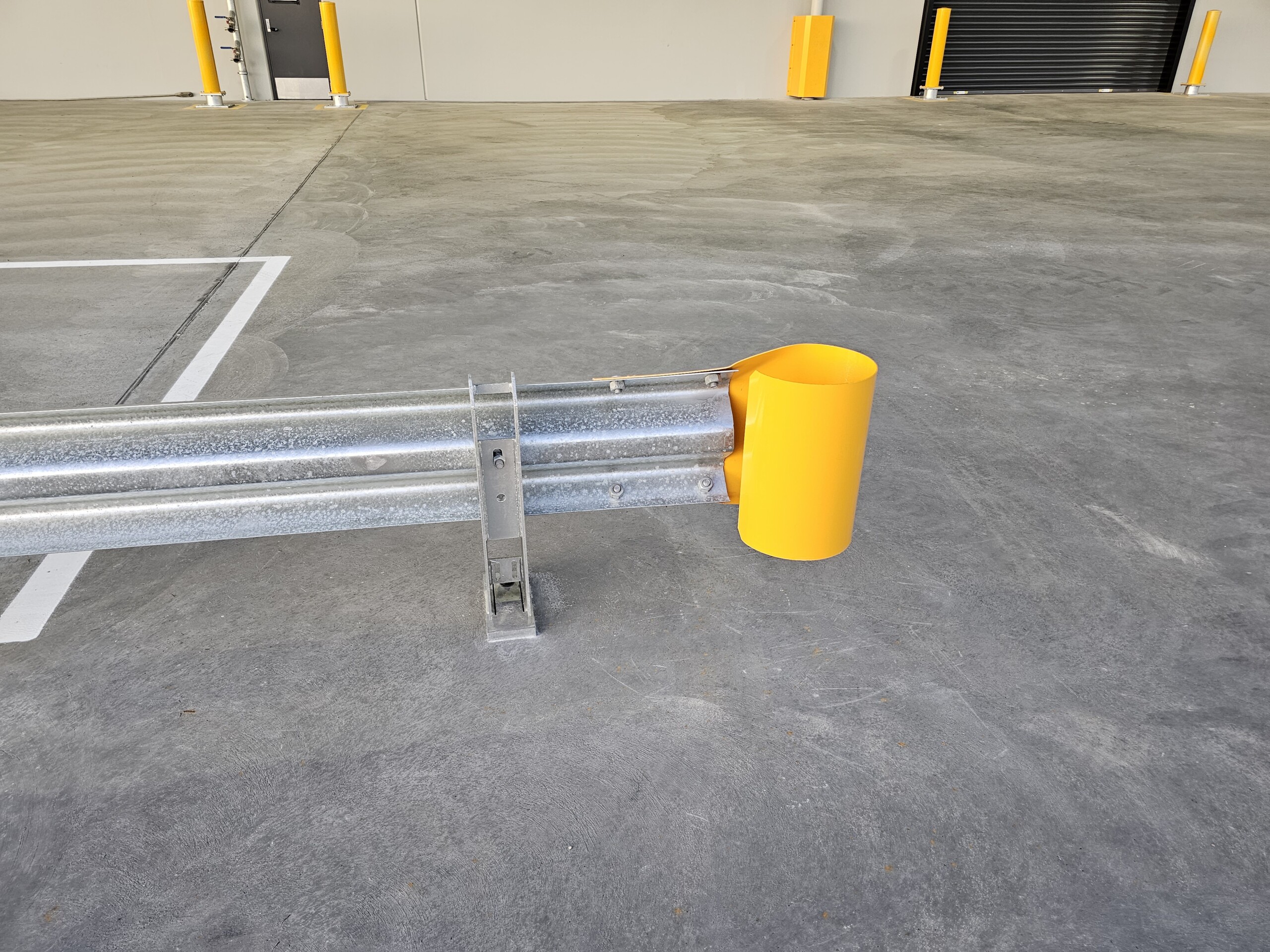

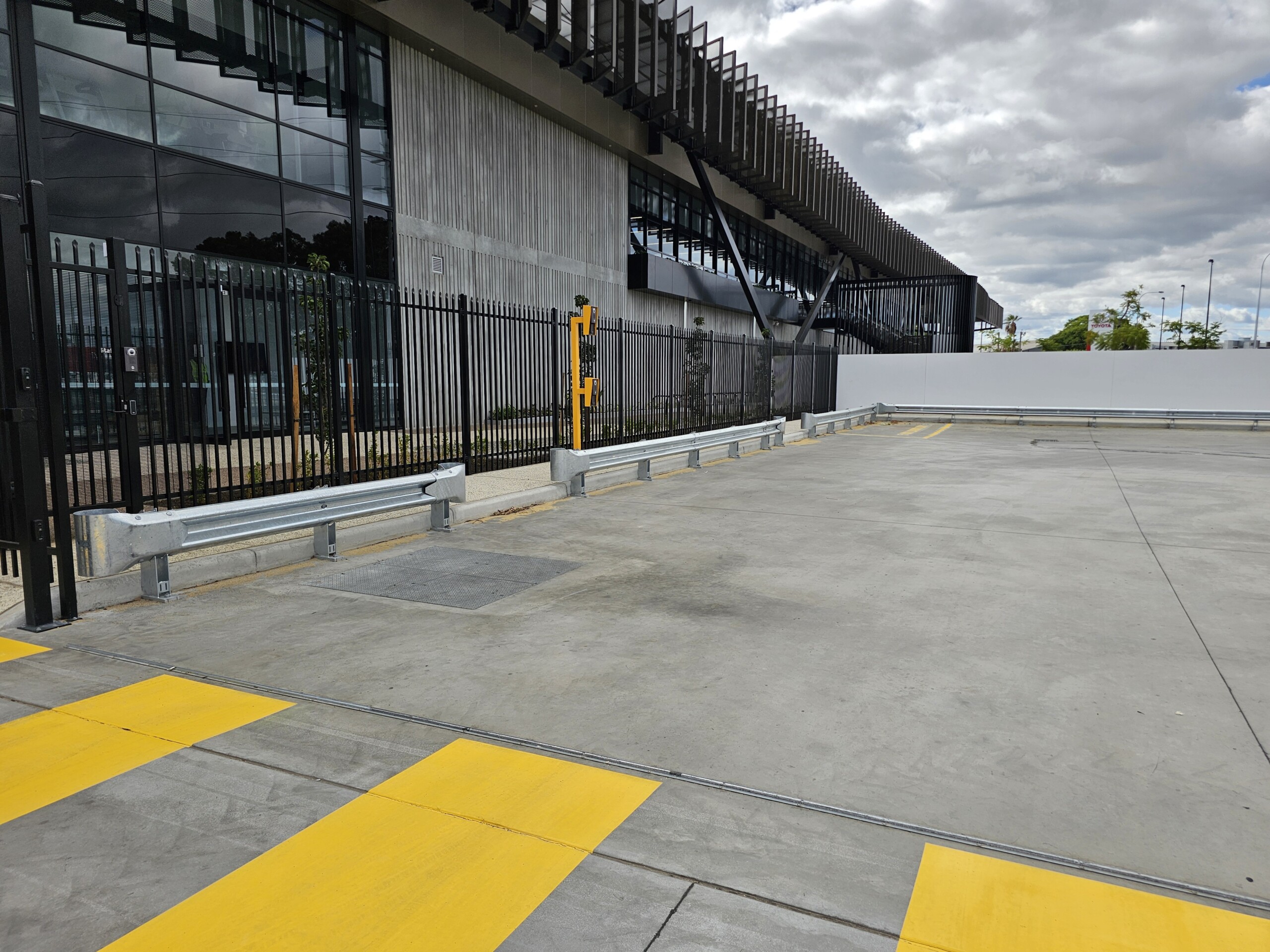

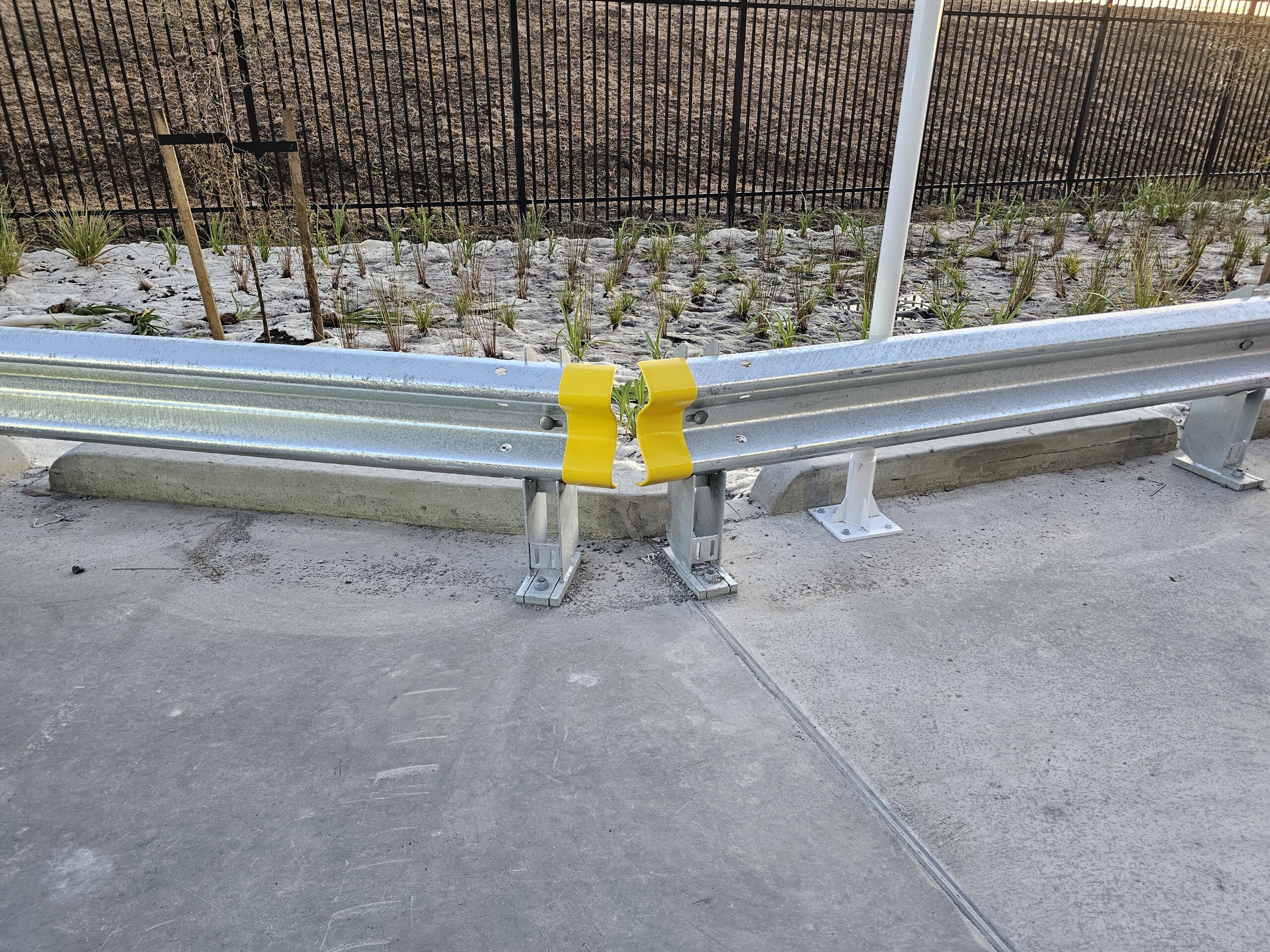

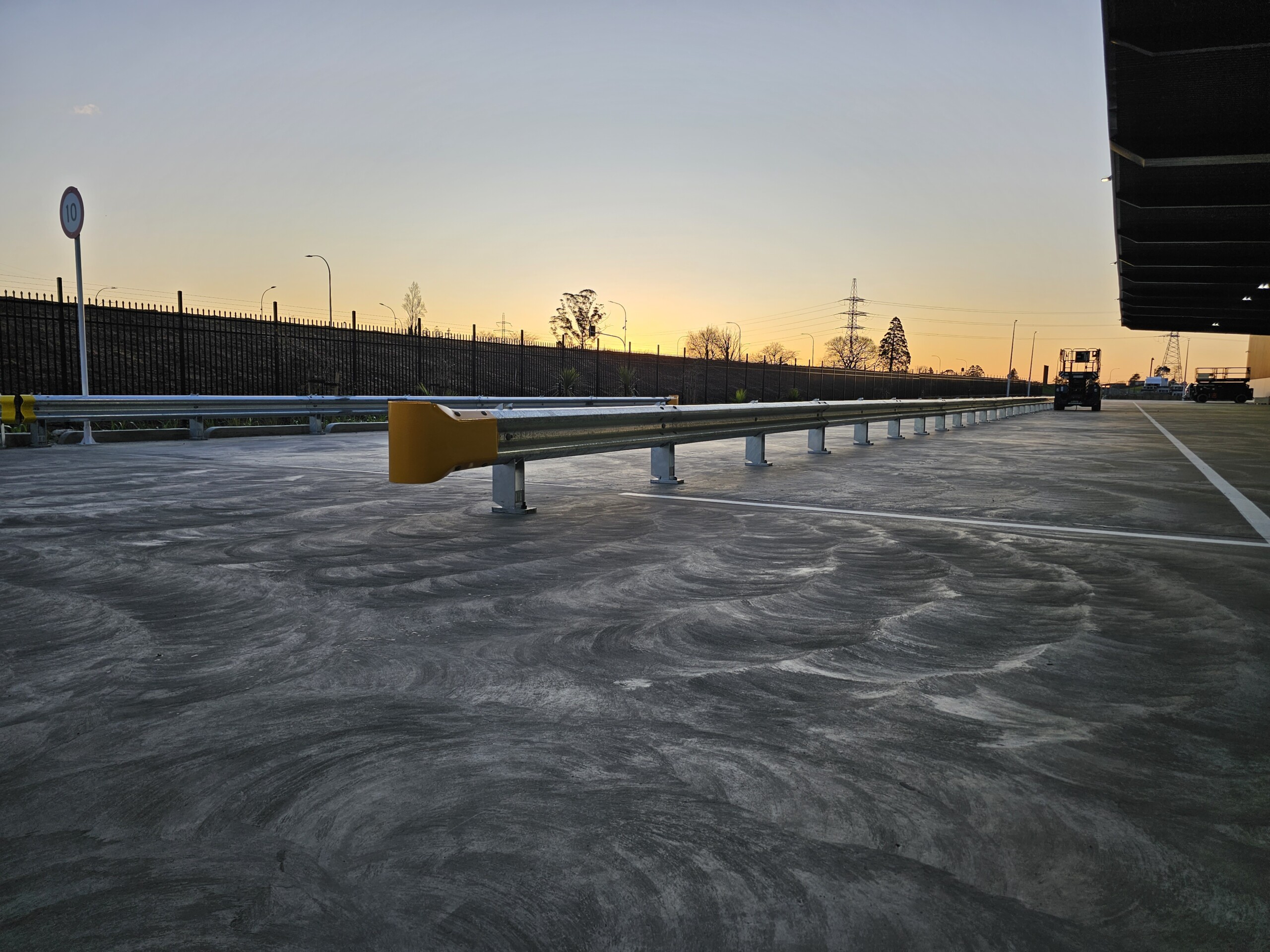

RhinoStop® Single Guardrail is a surface mount barrier designed to safely stop vehicles in car parks.
Protects assets from low-speed, low-centre-of-gravity vehicles.
Crash-tested and certified, these barriers feature energy-absorbing support posts that minimise force on bolts and reduce concrete damage.
Can be paired with a pedestrian handrail and anti-climb mesh infill when fall protection for pedestrians is required.
Key Features
- Crash tested and certified
- Energy-absorbing posts feature Crumple Zone Technology
- Narrow footprint
- Fully modular system (multiple configurations available)
- Edge-mounted options available to minimise barrier footprint
- Optional pedestrian handrail (RSSG-2) or anti-climb mesh (RSSG-4) for added safety
Testing & Certification
- Compliant with AS/NZS 2890.1: Parking Facilities – Off Street Car Parking
- Compliant with AS/NZS 1170.1 – Type F 30kN
- Additional crash testing performed to 60kN
- Low deflection – just 91mm for a 30kN impact
Technical Specifications
- Maximum post spacing: 2m
- Fixings: M20 x 187mm Fischer anchor studs (1 per post)
- Mounting surface: Concrete
- Overall Height: 625mm
- Finish: Plain galvanised steel (can be powder coated yellow if required)

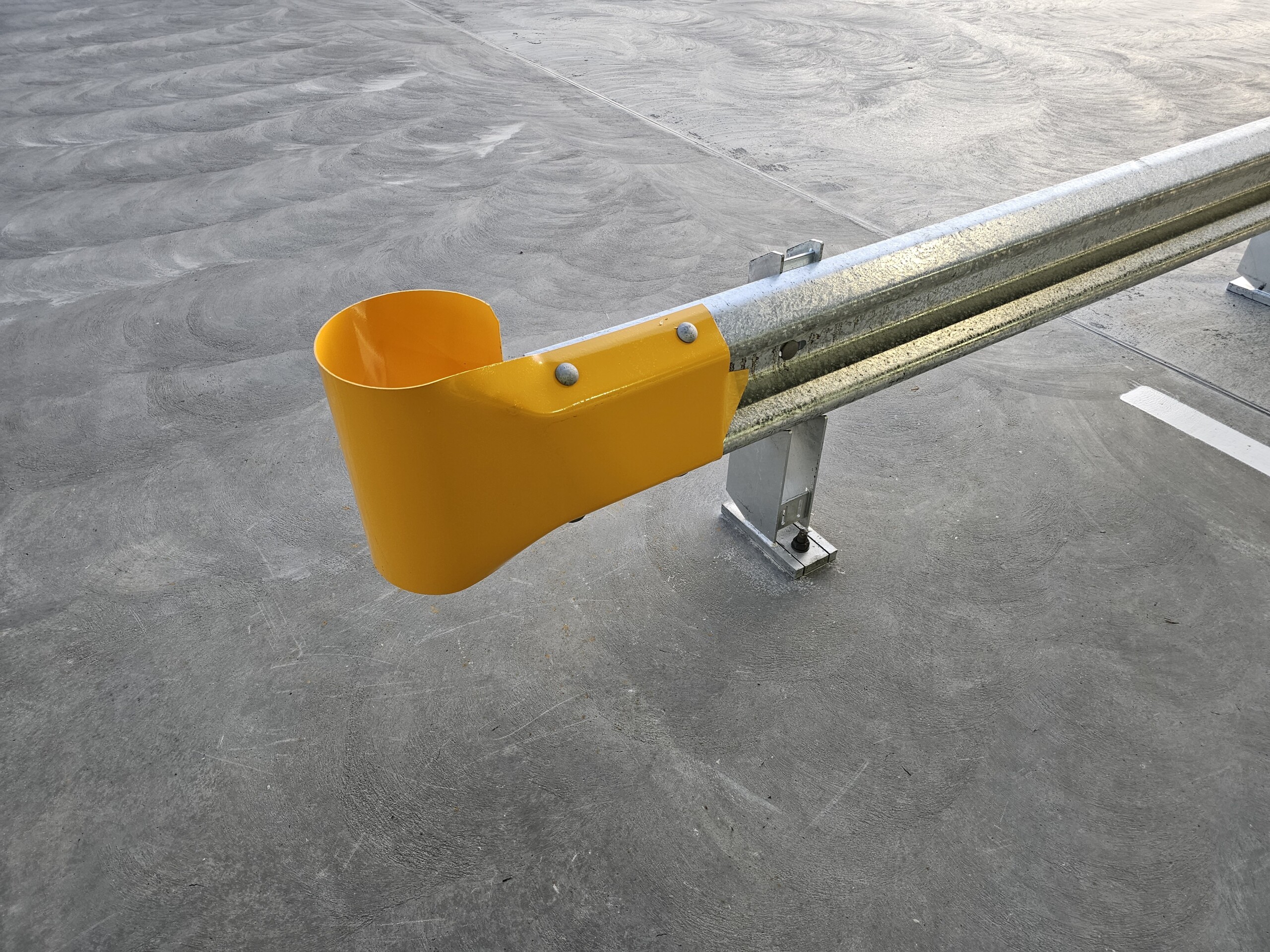

- End Caps: Plastic Sleeve (yellow), or Stumpy Bullnose (galv or galv yellow)
Options
Spec Sheets
Options
Code
Description
Height
Finish
End Cap
End Cap Finish
RSSG-1
Single Guardrail
625mm
Galvanised Steel
Stumpy Bullnose
Galvanised Steel
RSSG-2
Single Guardrail with Handrail - Type 2
Galvanised Steel
Stumpy Bullnose
Galvanised Steel w/ Yellow Powdercoat
RSSG-4
Single Guardrail with Handrail and Anti-Climb Mesh - Type 4
Galvanised Steel
Plastic Sleeve
Yellow
