Steel Barrier - 610 Single.
CODE:

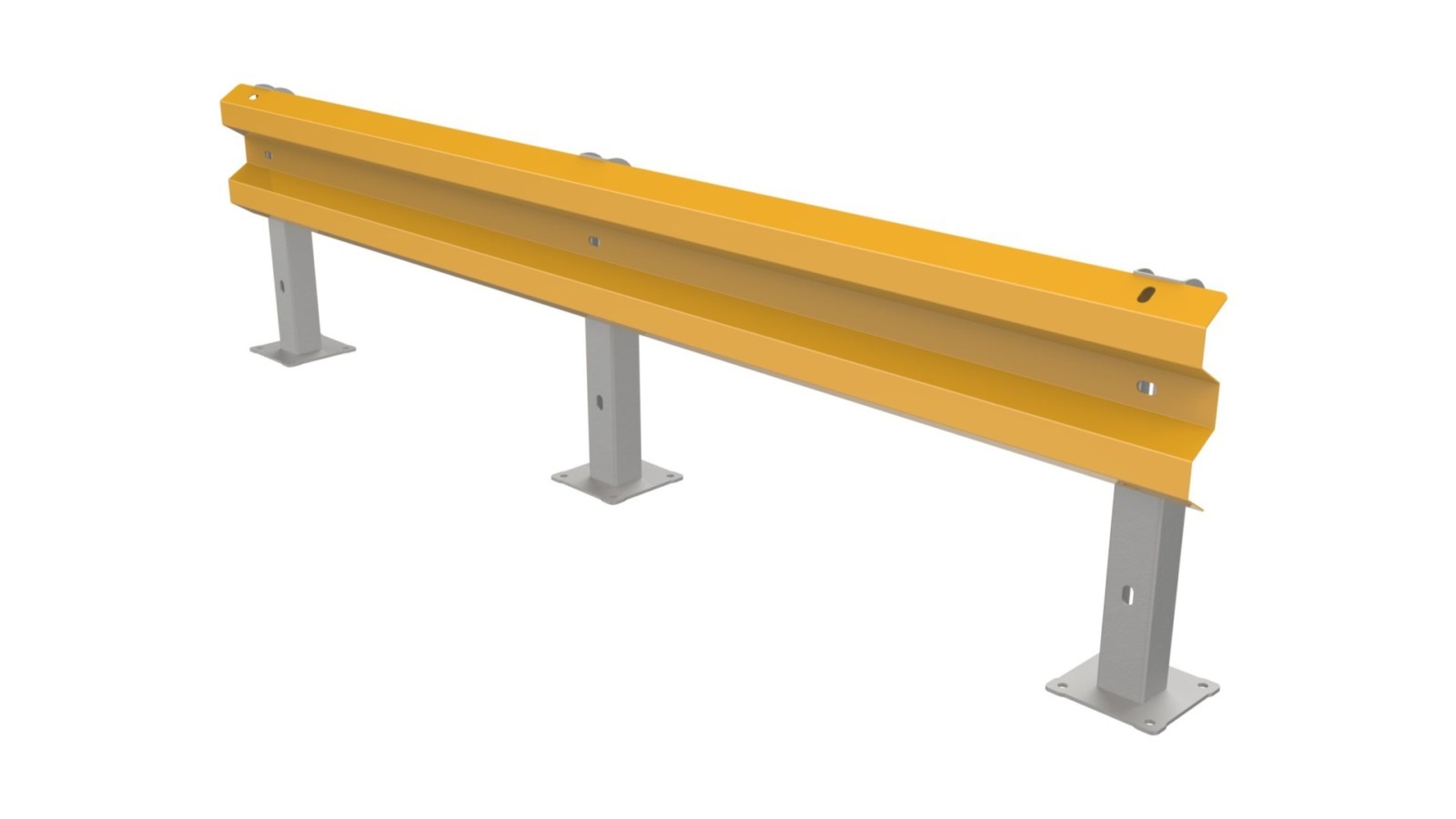

The 610mm high single rail barrier is a certified steel safety barrier system used for traffic management and protecting against forklift injury to personnel and damage to buildings and assets e.g. cool store walls.
Only recommended for walkways when supplied with pedestrian handrail, due to its lower height.
- Modular system can be configured to your required site layout
- Post centres of 1.1m ensure that every impact is absorbed by a post
- The 610mm high single rail stops 7T at 3.5km/h
- Compliant with AS/NZS 1170.1 Section 3.8. (Certification available by request)
- Can be installed with pedestrian handrail mounted to barrier
Options
Spec Sheets
Rating Table
Options
Code
Description
610-1
Steel Barrier 610mm High - Single
610-1H
Pedestrian Handrail
Spec Sheets
Rating Table
FAQs.
What is the ideal application for this barrier?
This barrier is perfect for any application where you need to keep people safe from forklift or vehicle operating areas.
Can access to a safe crossing area be allowed for?
Yes. Our pause gates are perfect for allowing access to a safe crossing area. Pause gates can be fitted anywhere along the length of the barrier.
Is this barrier customisable for my layout?
Absolutely. This barrier is a very flexible system, so we can adapt to suit your layout.
Is this barrier able to withstand a vehicle hit?
Yes. Various height and guard rail options are available to suit your application, ask us for the best option for your needs.
Can this barrier be bolted to asphalt?
No. This barrier must be bolted to concrete, so if the existing surface is asphalt, you will need to excavate and pour concrete footings to install the barrier onto. Concrete footers need to be a minimum of 25MPA and 400mm wide x 300mm deep. If you would prefer to install individual footers for each post, these need to be a minimum of 400(L)x400(W)x300(D)mm per post.
