ULTRAFLEX Delineator.
CODE:

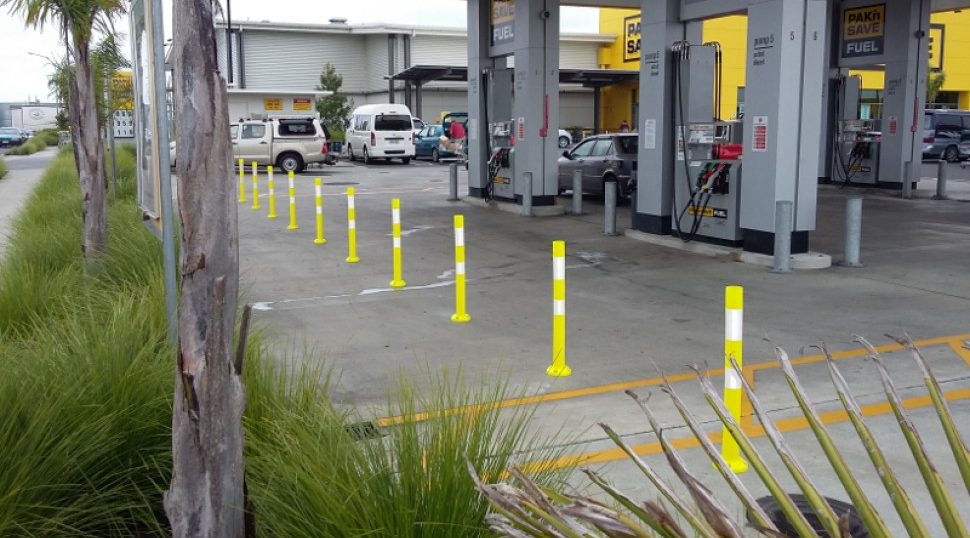

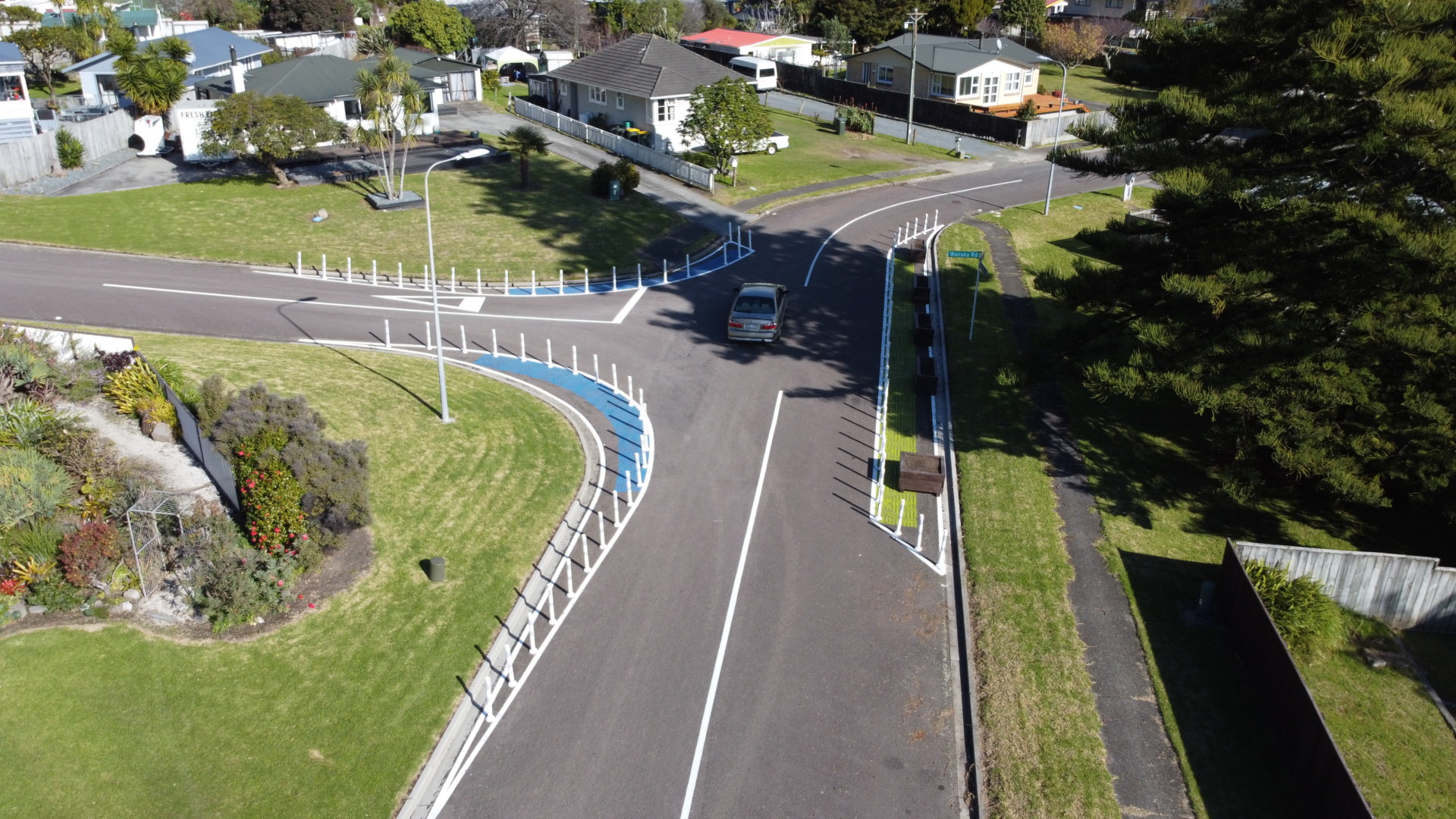

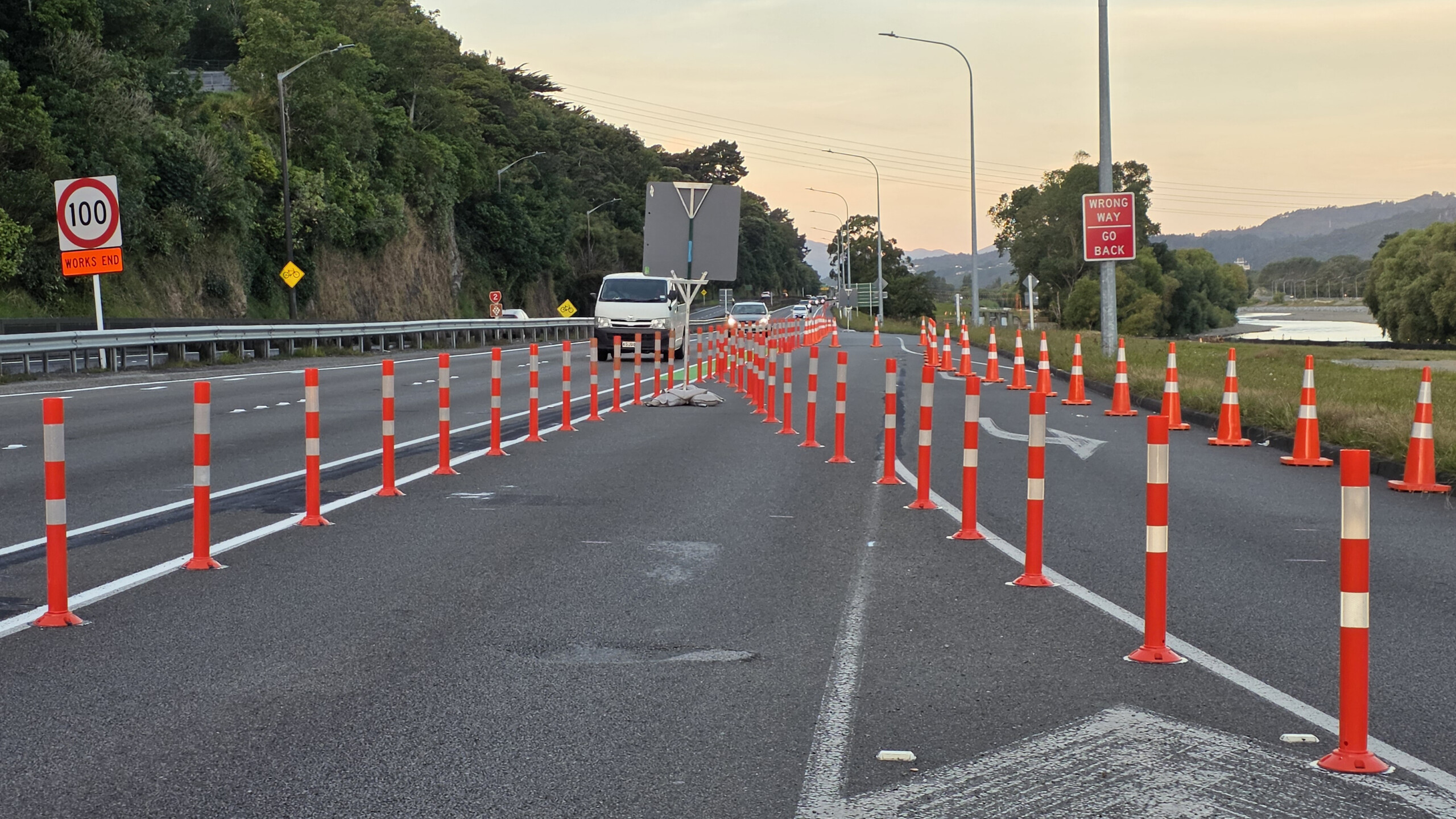

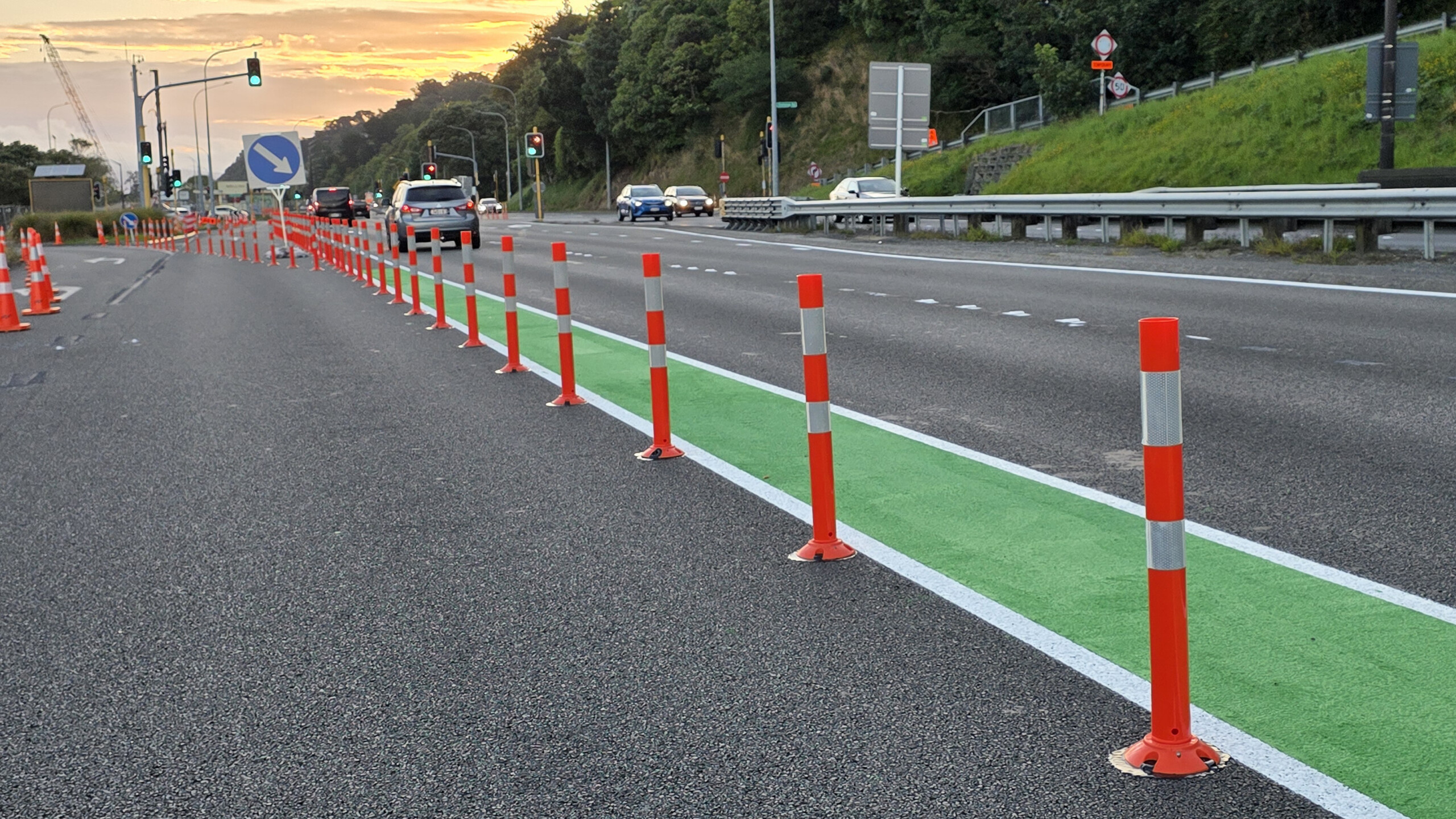

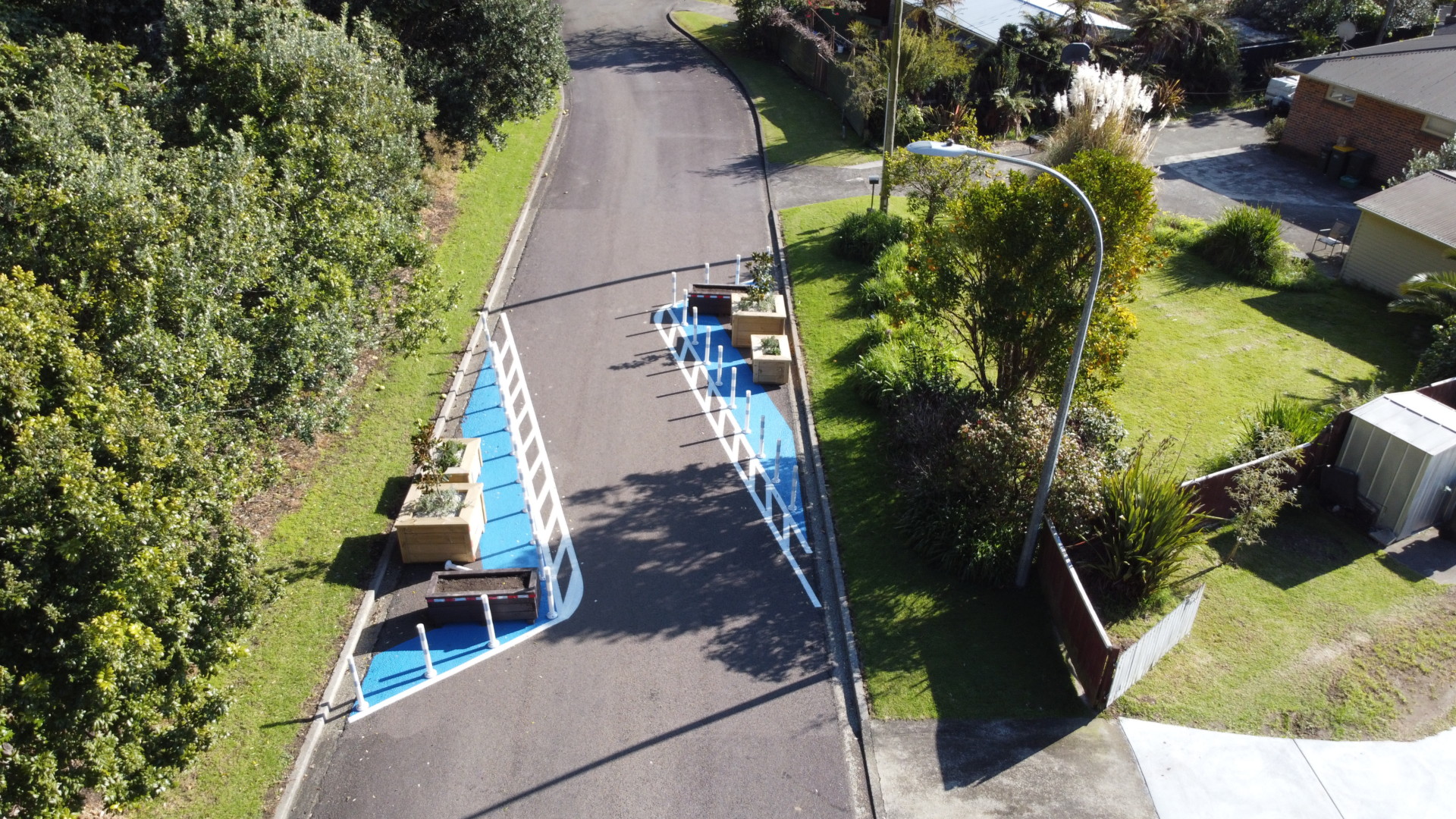

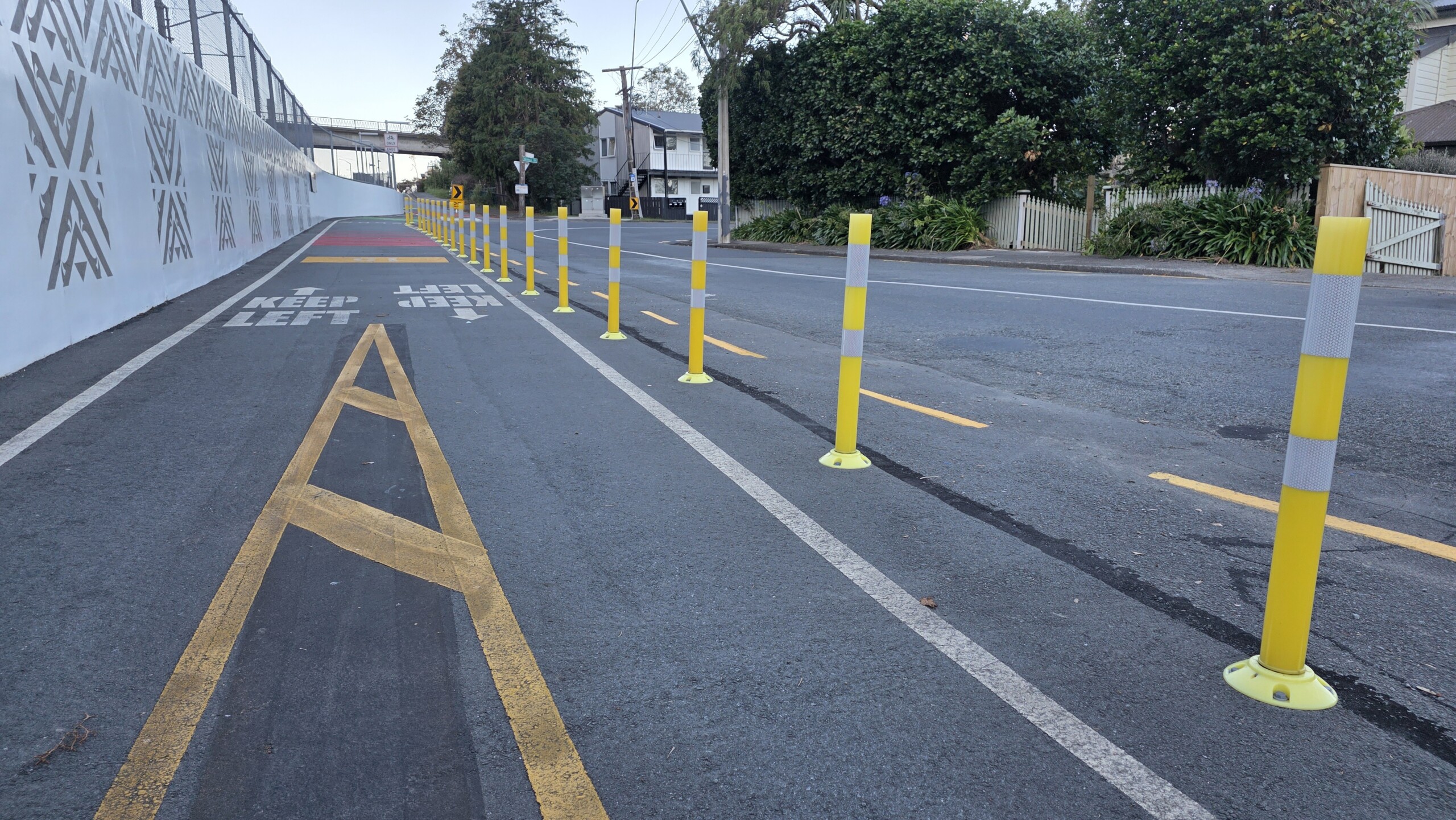

The two-piece ULTRAFLEX Delineator is a premium quality delineator designed for temporary or permanent delineation on residential roads, highways, carparks, and cycleways.
Also known in the industry as ‘safe hits’, ‘hit sticks’ or ‘flexi posts’, they are designed to provide delineation and safely withstand vehicle impacts before returning to upright position.
Key Features
- Manufactured from highly durable UV-stabilised polyurethane
- Tested and certified to withstand up to 100 direct hits at 100km/h
- NZTA approved

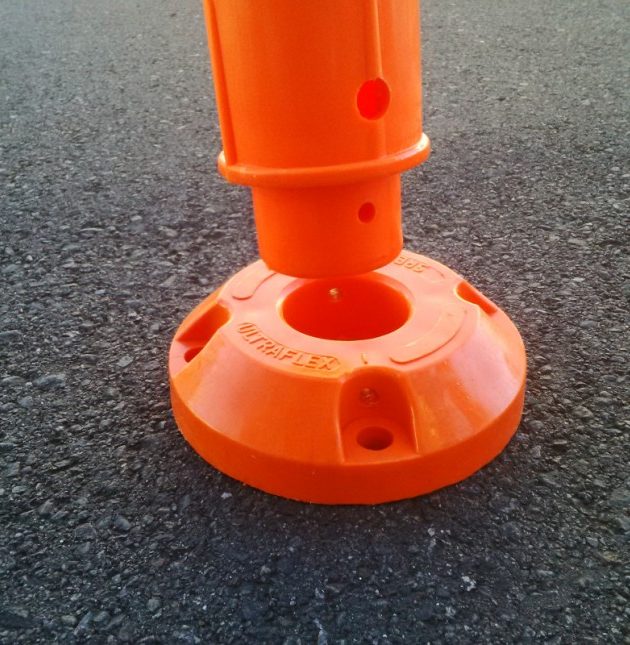

- Two-piece post and base design for easy installation and post replacement

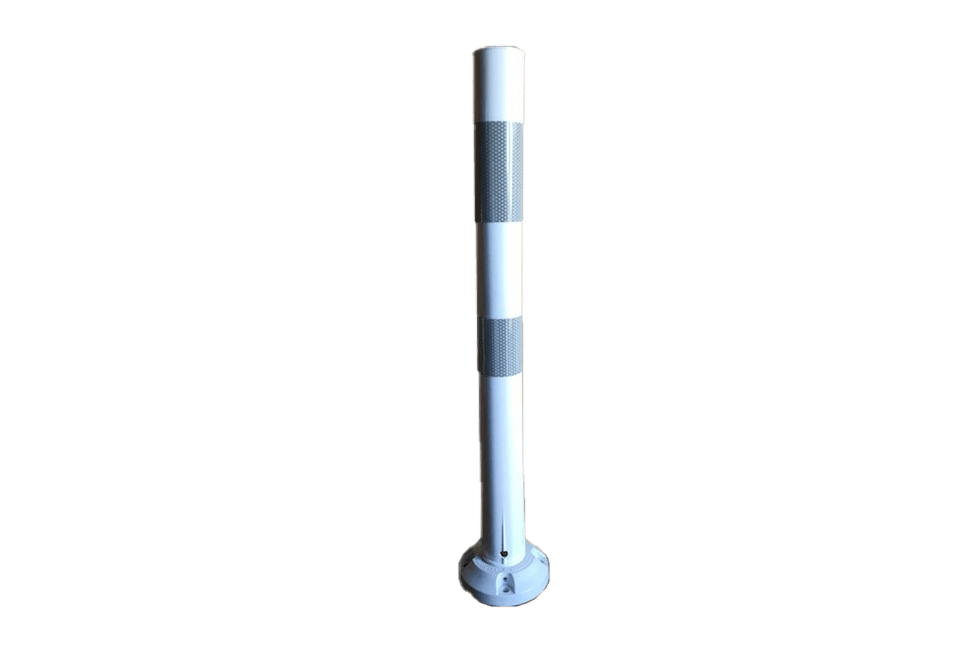

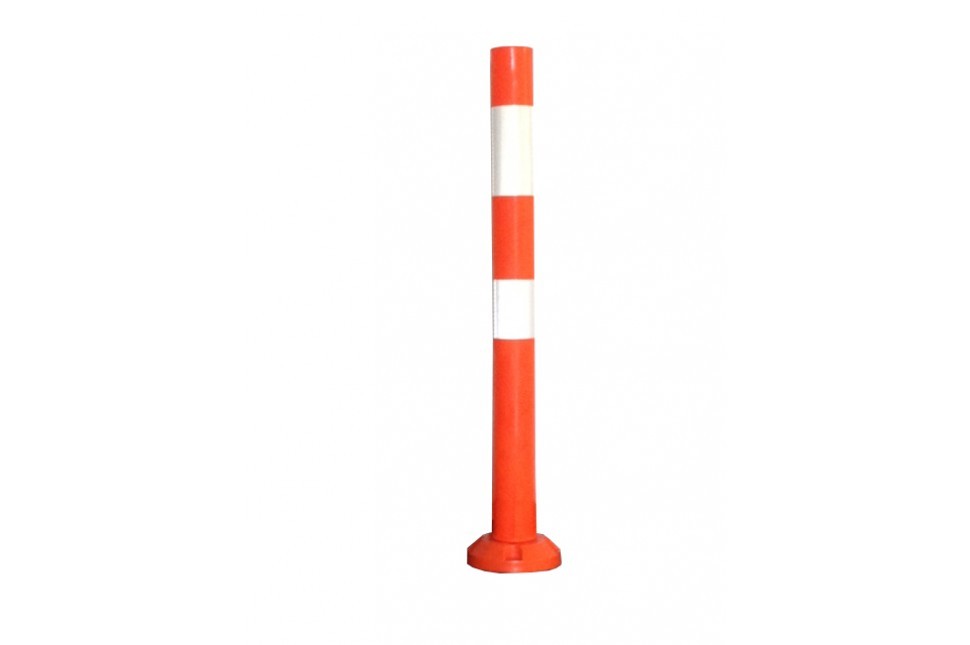

- Available in Orange, Yellow, and White
- 3 fixing types available (see options below)
Options
Videos
Spec Sheets
Options
Code
Description
Colour
Size (mm)
1410-007
ULTRAFLEX Delineator (Post + Base)
Orange
Post: 900(H) x 75(D); Base: 165(D)
1410-066
ULTRAFLEX Delineator (Post + Base)
Yellow
Post: 900(H) x 75(D); Base: 165(D)
1410-067
ULTRAFLEX Delineator (Post + Base)
White
Post: 900(H) x 75(D); Base: 165(D)
1911-063
Fastener: Coach Screw, Washer & Plug (Asphalt/Bitumen) - 4 per post
M10 x 75
1911-035
Fastener: AnkaScrew (Concrete) - 4 per post
M10 x 75
1910-005
Fastener: Butyl Adhesive Pad - 1 per post
200 x 200
Videos
ULTRAFLEX Delineator | Product Overview
Spec Sheets
FAQs.
How does the single pin installation work?
The ULTRAFLEX Delineator features a single pin installation system, which allows for quick and efficient post replacement. This design simplifies the process, making it easy to remove and install posts as needed.
Are these delineators UV-stabilised?
Yes, the ULTRAFLEX Delineator is UV-stabilised, ensuring longevity and maintaining visibility even in harsh outdoor environments.
How has the durability of these delineators been tested?
The ULTRAFLEX Delineator has been rigorously tested to withstand up to 100 direct impacts at speeds of 100km/h. This high-speed testing ensures that the delineators provide robust performance and durability in demanding traffic conditions.
Why are they also called 'safe-hits' or 'hit sticks'?
Safe-hits and hit-sticks are industry terms that have been used for a long time. They are a way of describing fleible delineators that are designed to take a vehicle hit safely and return back to upright position, hence the simple but accurate terms of 'safe-hit' and 'hit-stick'
