d-flexx Pedestrian Barrier.
CODE:

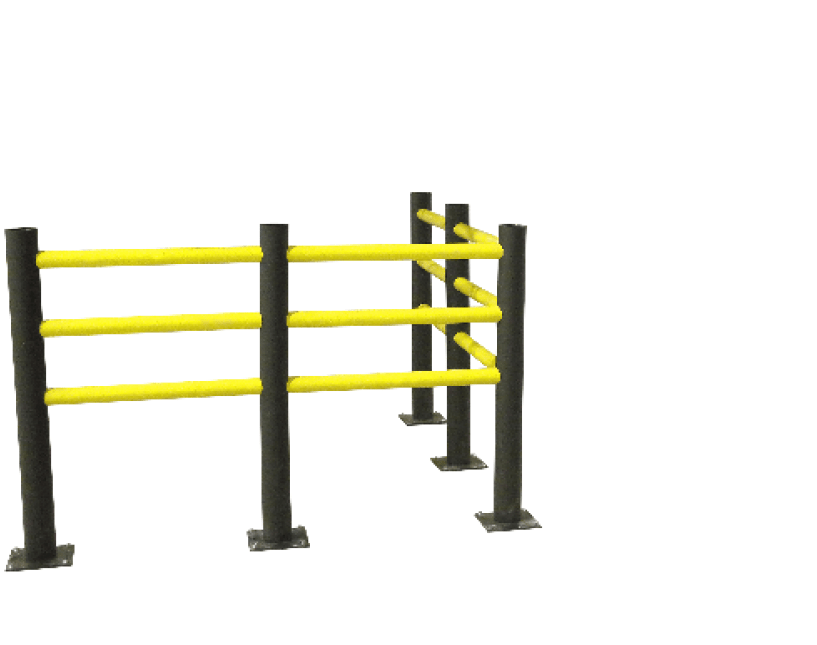

d-flexx Pedestrian Barrier is a certified, shock absorbent and highly impact resistant safety barrier.

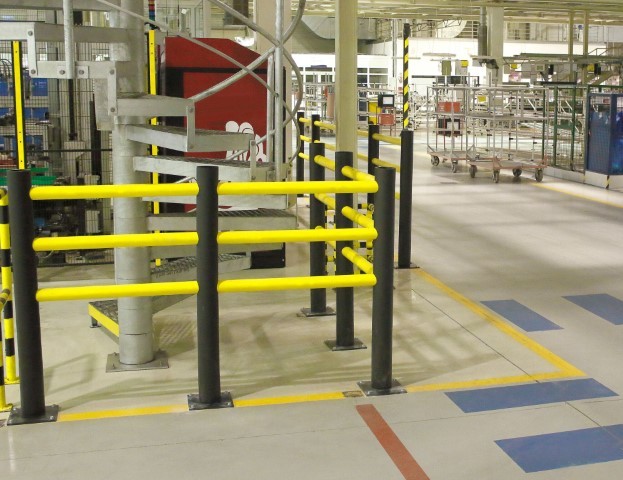

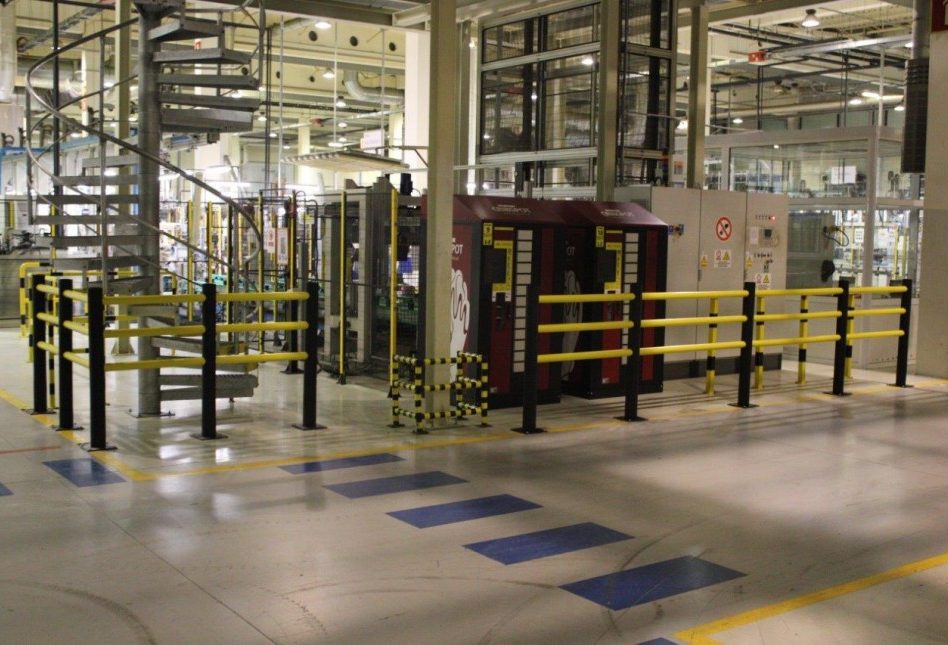

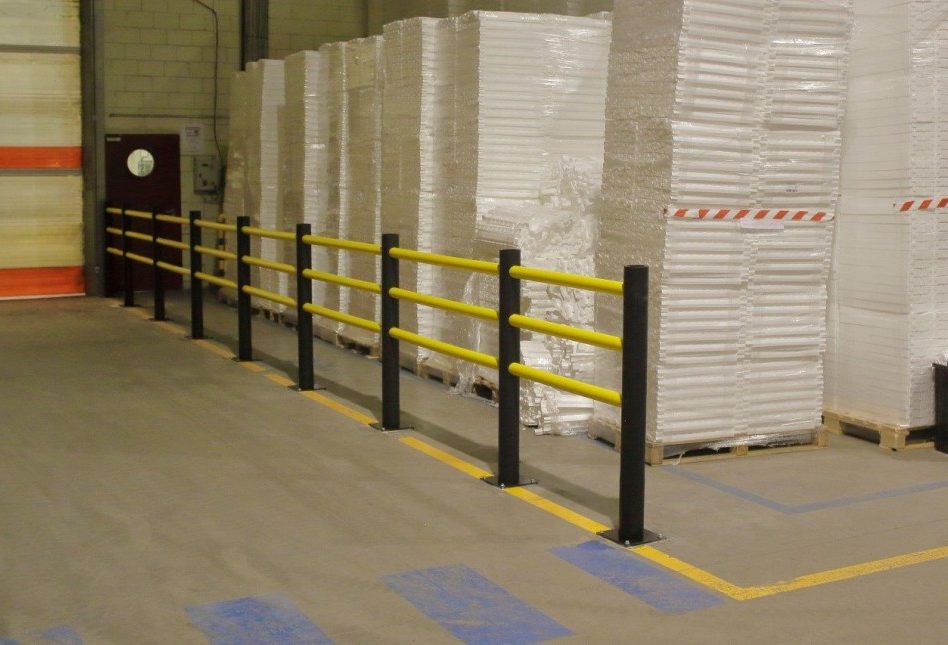

Three pedestrian rails make this a simple yet effective barrier to separate people from light vehicles and machinery, and prevent pedestrians from walking into dangerous traffic areas.
- Absorbs energy on impact then returns to its original shape
- Made from a flexible, impact-resistant PE polymer
- 100% recyclable, UV-resistant and suitable for indoor and outdoor use
- Stops 2T at 6.2km/h
- PAS13 compliant, and tested and certified by German TÃœV NORD (DIN EN 1512) to exceed AS/NZ 1170.1:2002 Section 3.8 (Type G)
- Can be used in temperature ranges from -40° up to + 50°
- Supplied with M10 x 70mm Anka Screws
View the full d-flexx family and case study here
Options
Videos
Spec Sheets
Rating Table
Options
Code
Description
DFFS
d-flexx Pedestrian Barrier
Videos
d-flexx | Impact Test
d-flexx Barrier | Installation Guide
Spec Sheets
Rating Table
FAQs.
Can the d-flexx Pedestrian Barrier be bolted onto asphalt?
No, the d-flexx Pedestrian Barrier must be bolted onto concrete. If the existing surface is asphalt, you will need to excavate and pour concrete footings to install the barrier onto. Concrete footers need to be a minimum of 25MPA and 300mm wide x 300mm deep. If you would prefer to install individual footers for each post, these need to be a minimum of 300(L) x 300(W) x 300(D)mm per post.
