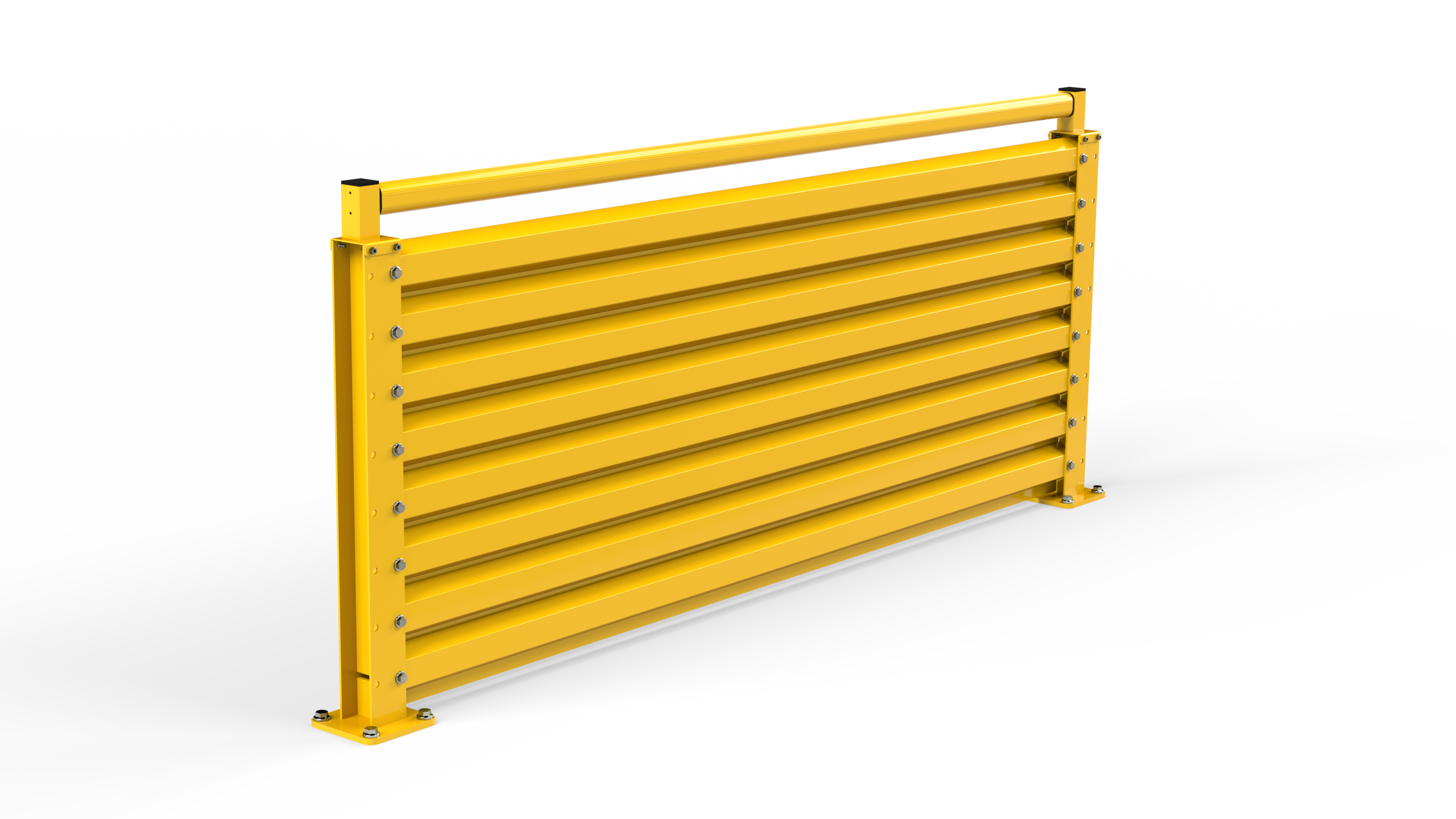

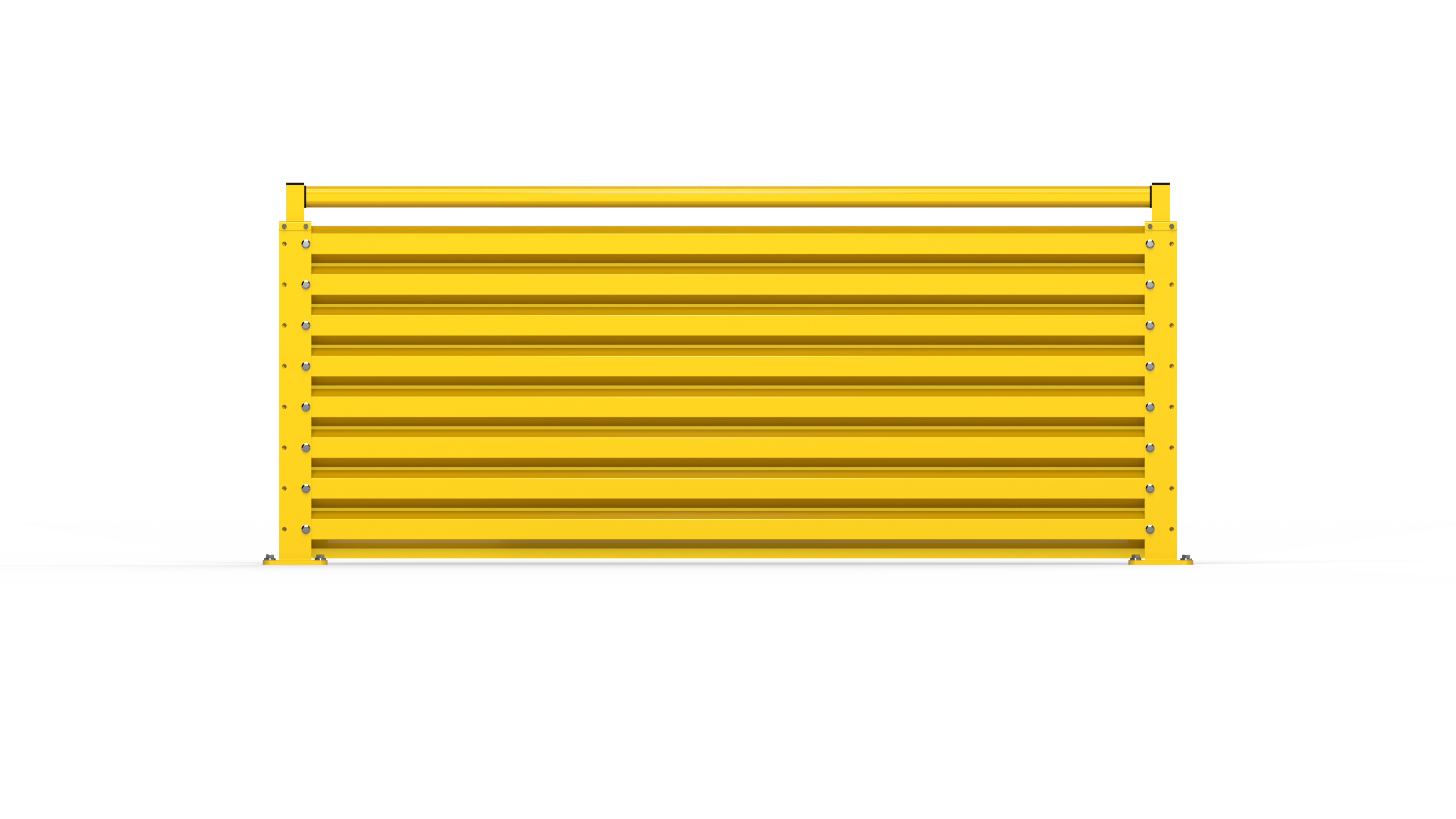

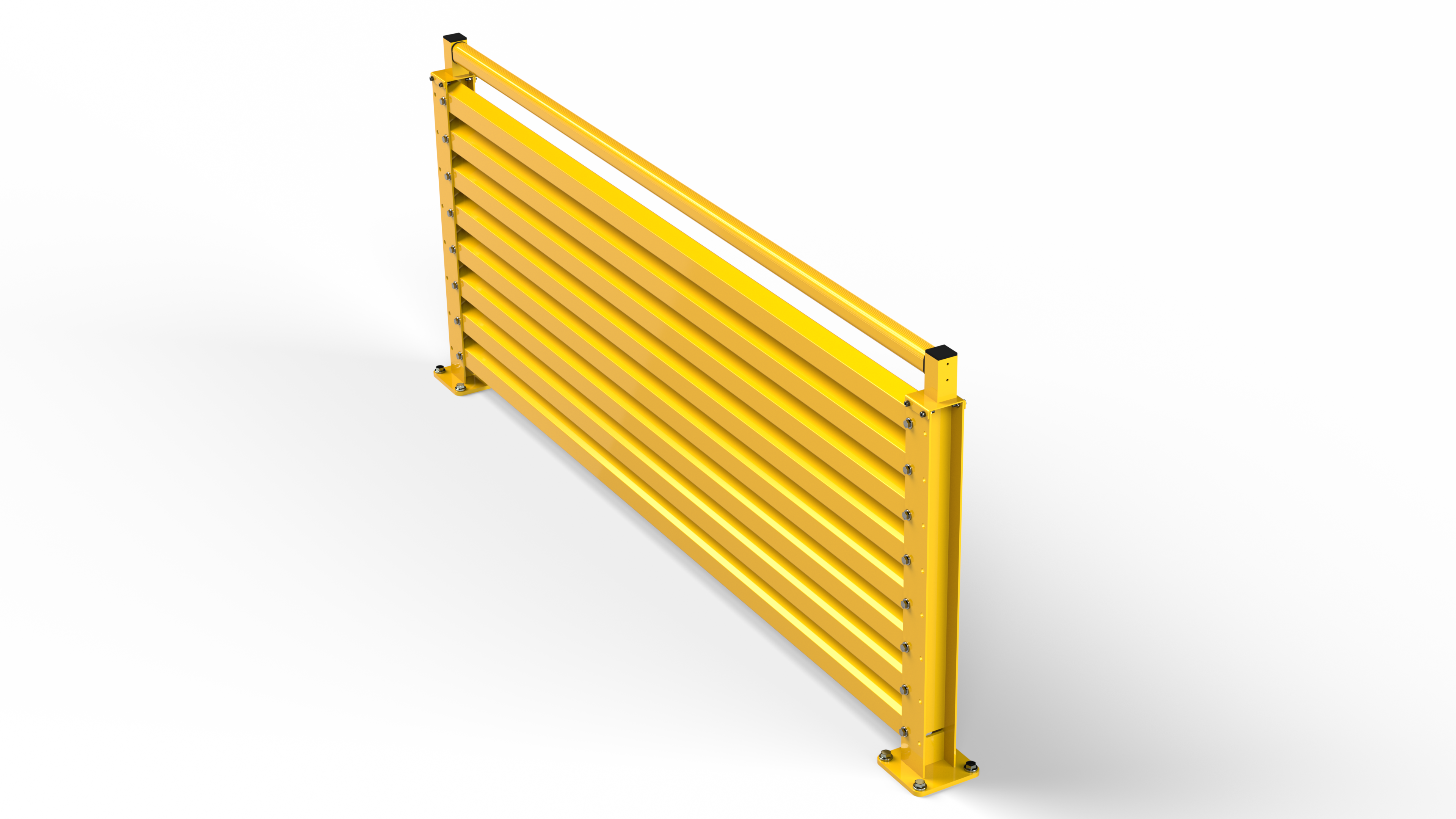

ForkSafe 950-D.
CODE:
ForkSafe 950-D is a heavy-duty steel barrier wall designed to protect pedestrian walkways from heavy forklift, MHE, and vehicle impacts up to 16.23 kJ.
The 950-D is our 950-C barrier with the addition of a handrail providing pedestrians with an ergonomic grip in wet and slippery areas while providing maximum impact protection.
With the addition of lower rails to guard against low-level impacts, the 900-D’s full-barrier configuration delivers the highest strength rating and a solid wall of protection for pedestrians, assets, and infrastructure in high-traffic areas.
ForkSafe Steel Barriers protect people, equipment, and infrastructure in high-traffic forklift zones.
Engineered for impact resistance, this certified modular system safeguards buildings, assets, and personnel from damage or injury caused by forklifts and other vehicles.
Key Features
- Crumple Zone Technology (CZT) reduces floor damage on impact

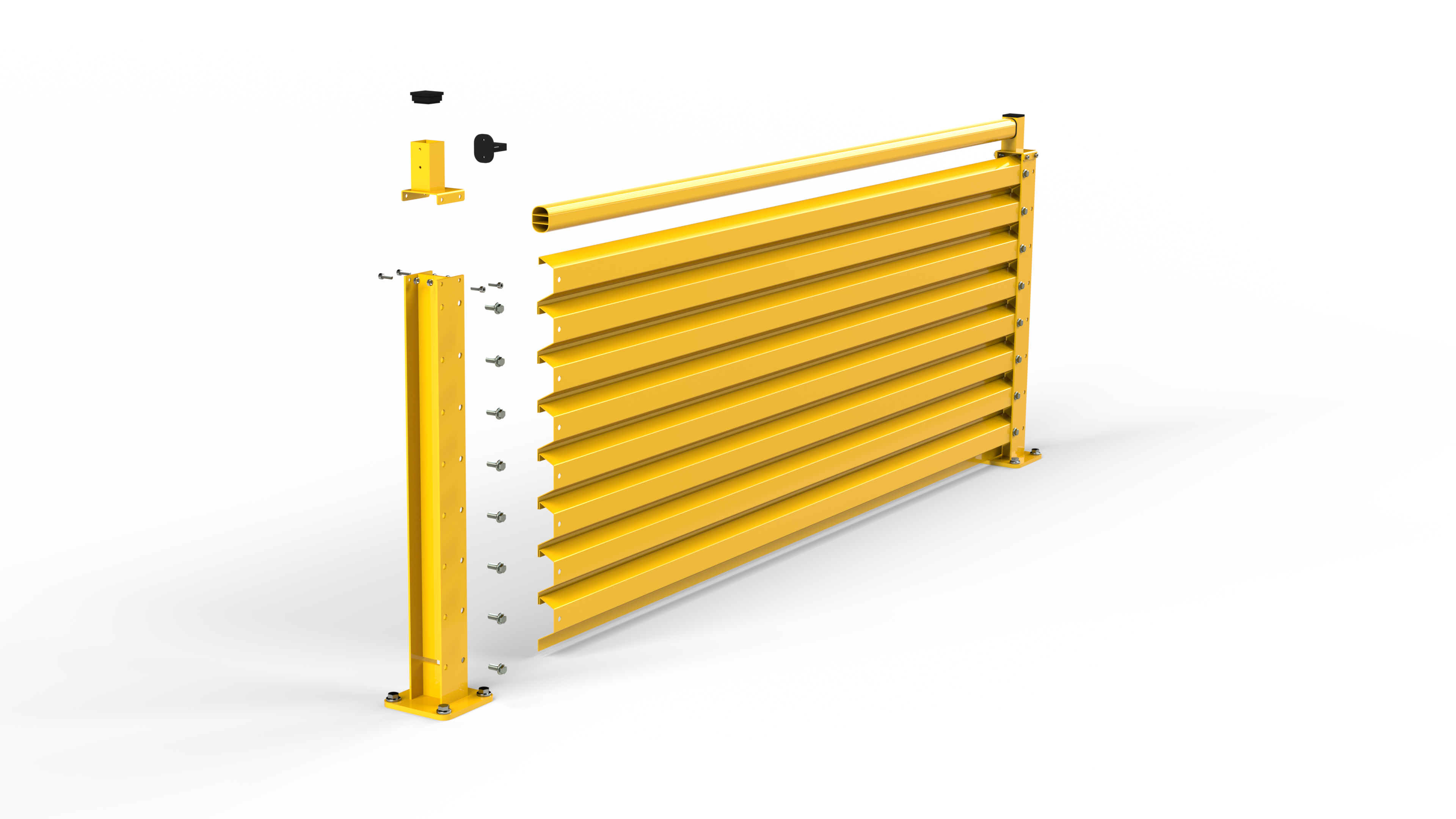

- Fully modular for easy customisation – easy to cut, install, expand, and replace parts
- High-strength steel construction for forklift and MHE zones
- Replaceable posts and rails for easy maintenance
- Supplied with screw anchors for fast and secure installation
- Suitable for forklifts, reach trucks, and pallet trolleys
- Backed by a 10 Year Warranty
Testing & Certification
- Impact simulation tested — stops 7T at 7.8 km/h
- Impact resistance:Â 16.23 kJ
- Meets AS/NZS 1170.1 Section 3.8 — Type F 30kN and Type G 40kN
- Tested in compliance with PAS13 (certification available on request)
Technical Specifications
- Height: 1050mm (to top of handrail)
- Number of Rails Per Bay: 1 set (1 set = 8 rails)
- Rail Lengths: 1200mm, 2400mm
- Finish: Galvanised with yellow powder coat finish
- Post Material: Steel – 5mm and 8mm wall thickness
- Rail Material: Steel – 2mm wall thickness
- Connector: M12 x 30mm 8.8 high tensile bolt
- Fixings: M12 x 100mm concrete screw bolts (4 per post, supplied)
- Post Size: 90 x 90mm ‘I’ beam type section
- Base Plate: 180 x 180mm square, 12mm thick, 4 x Ø16mm anchor holes
- Cap: Yellow HDPE clip-on cap
