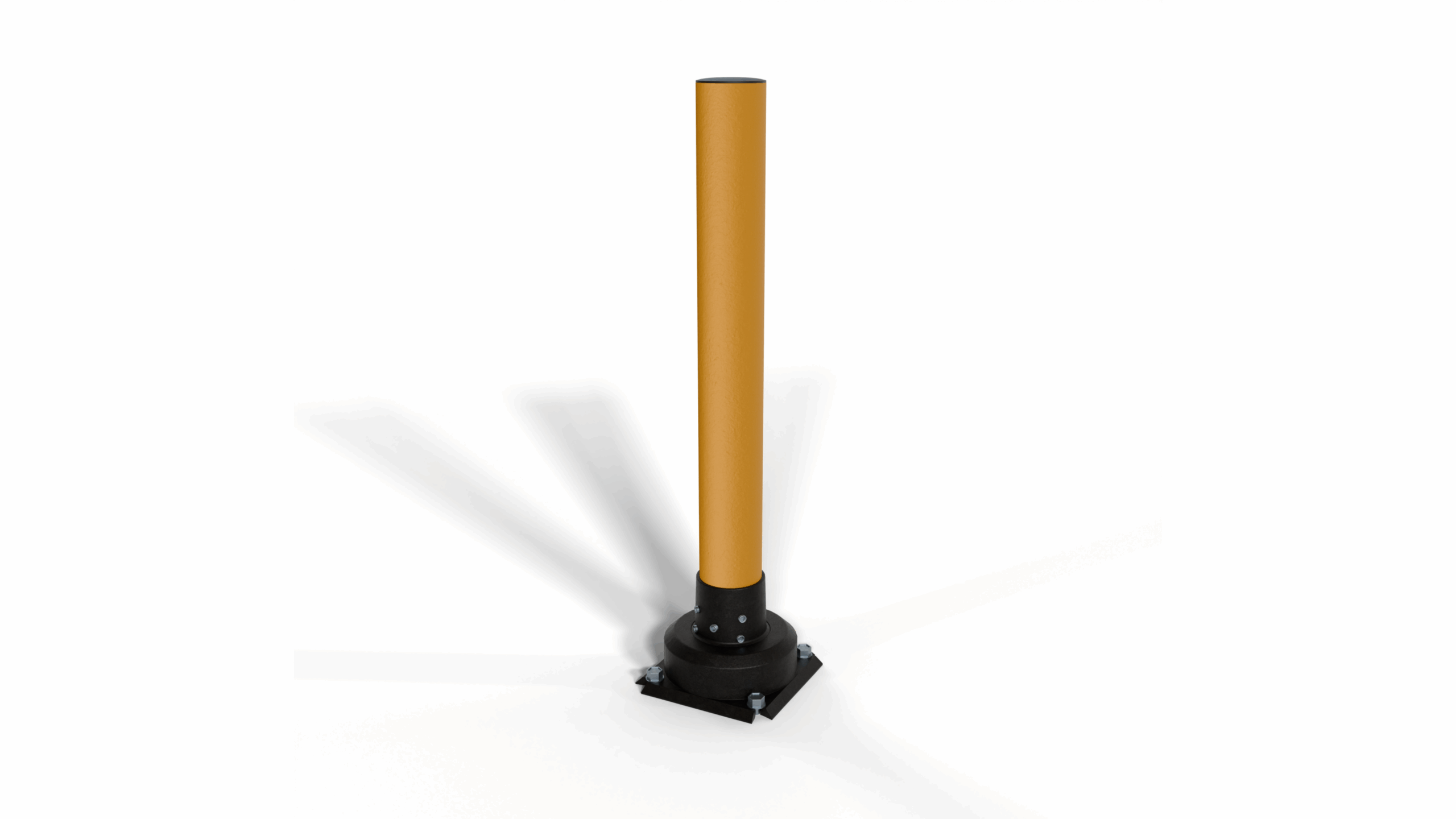

SlowStop® Bollard - 101mm Dia.
CODE:
Impact resistance: 10.2 kJ
SlowStop Bollards are the world’s only full steel rebounding bollard designed to do far more than just block access.
The 101mm’s revolutionary steel pipe design is built to absorb impacts up to 10.2 kJ, ideal for medium industrial environments where cars, small trucks, and typical forklifts are present at lower speeds.
Reduce damage. Stop repairing and replacing bollards. Also available in 141mm and 168mm diameters.
Key Features

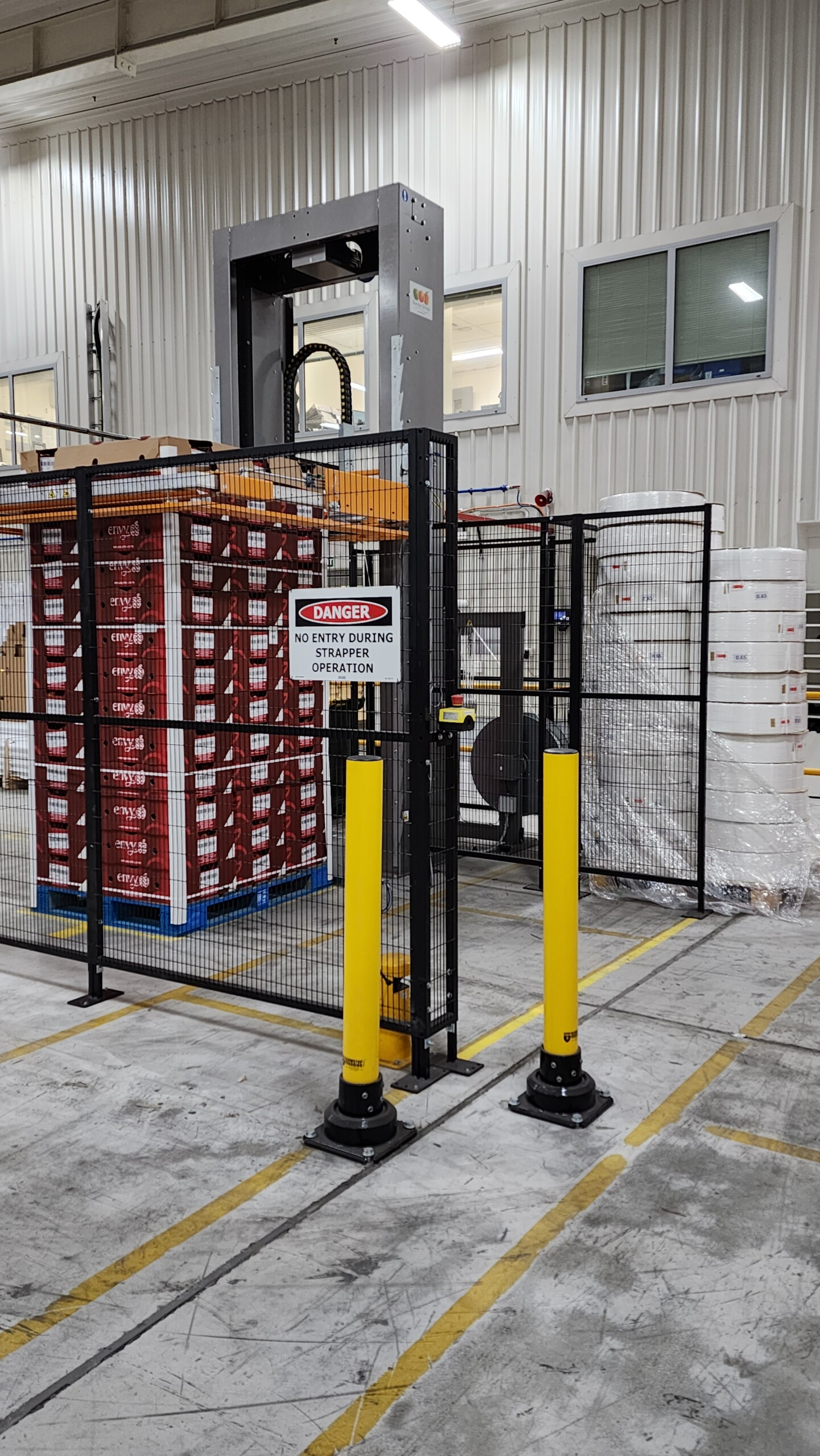

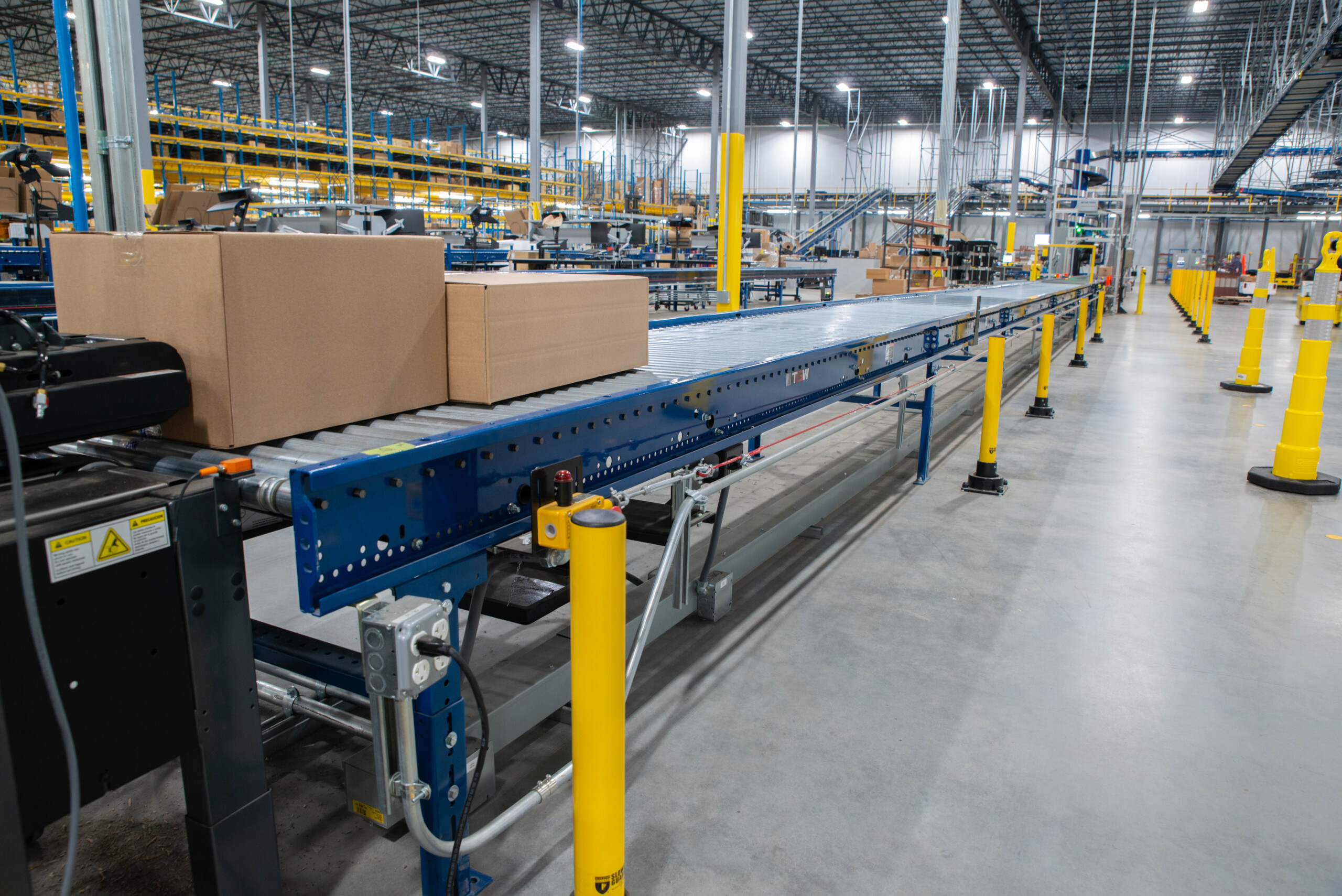

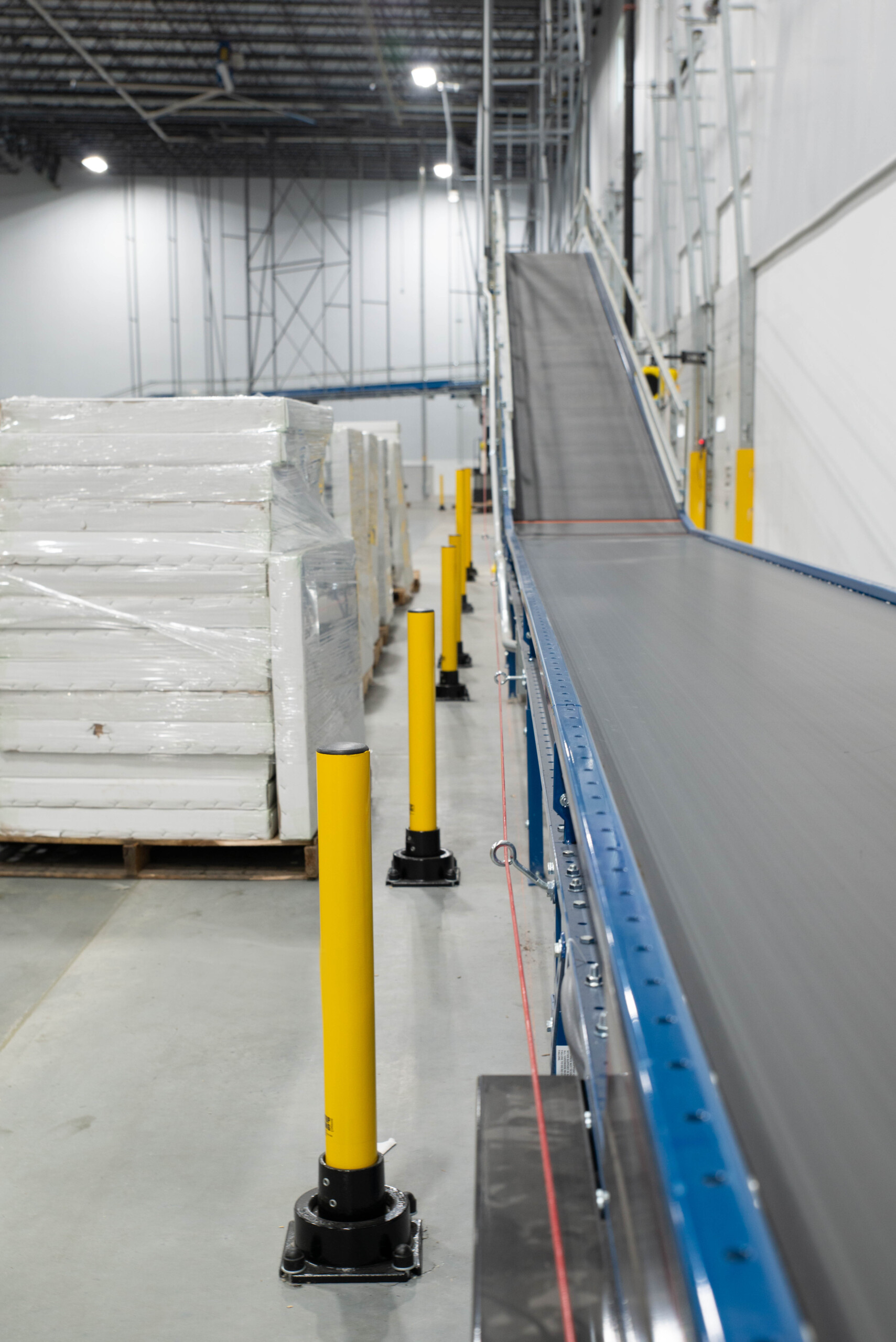

- Protect pallet rack, equipment, vehicles, and pedestrians from damaging collisions
- Facility maintenance and safety has never been easier

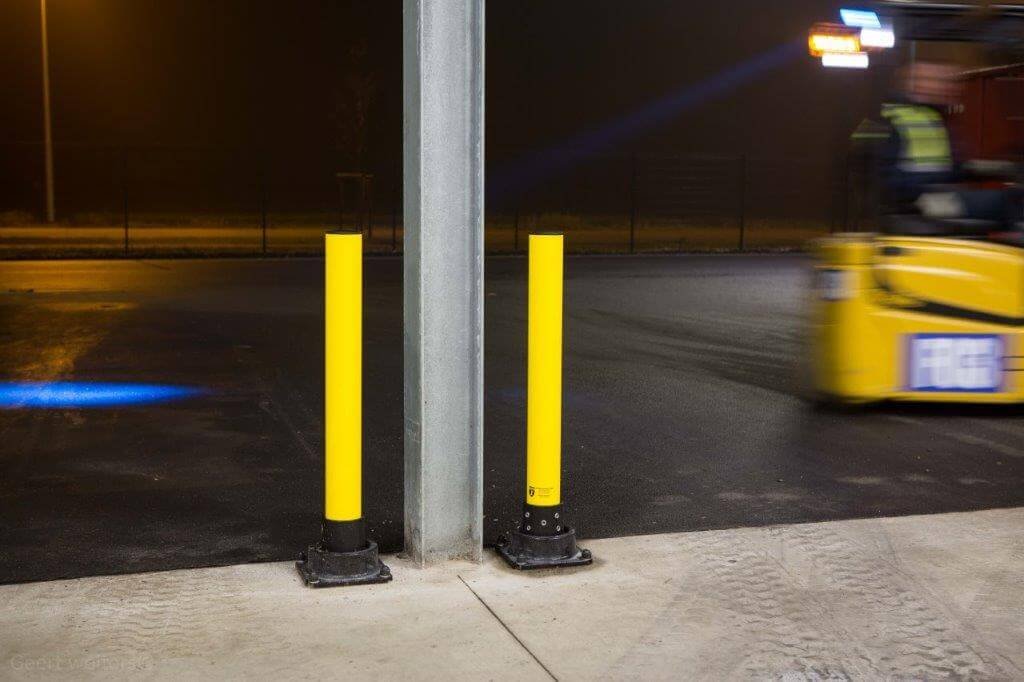

- Ideal for medium applications such as cars, light trucks, and typical forklifts
- Perfect for Industrial applications as well as storefront pedal error protection

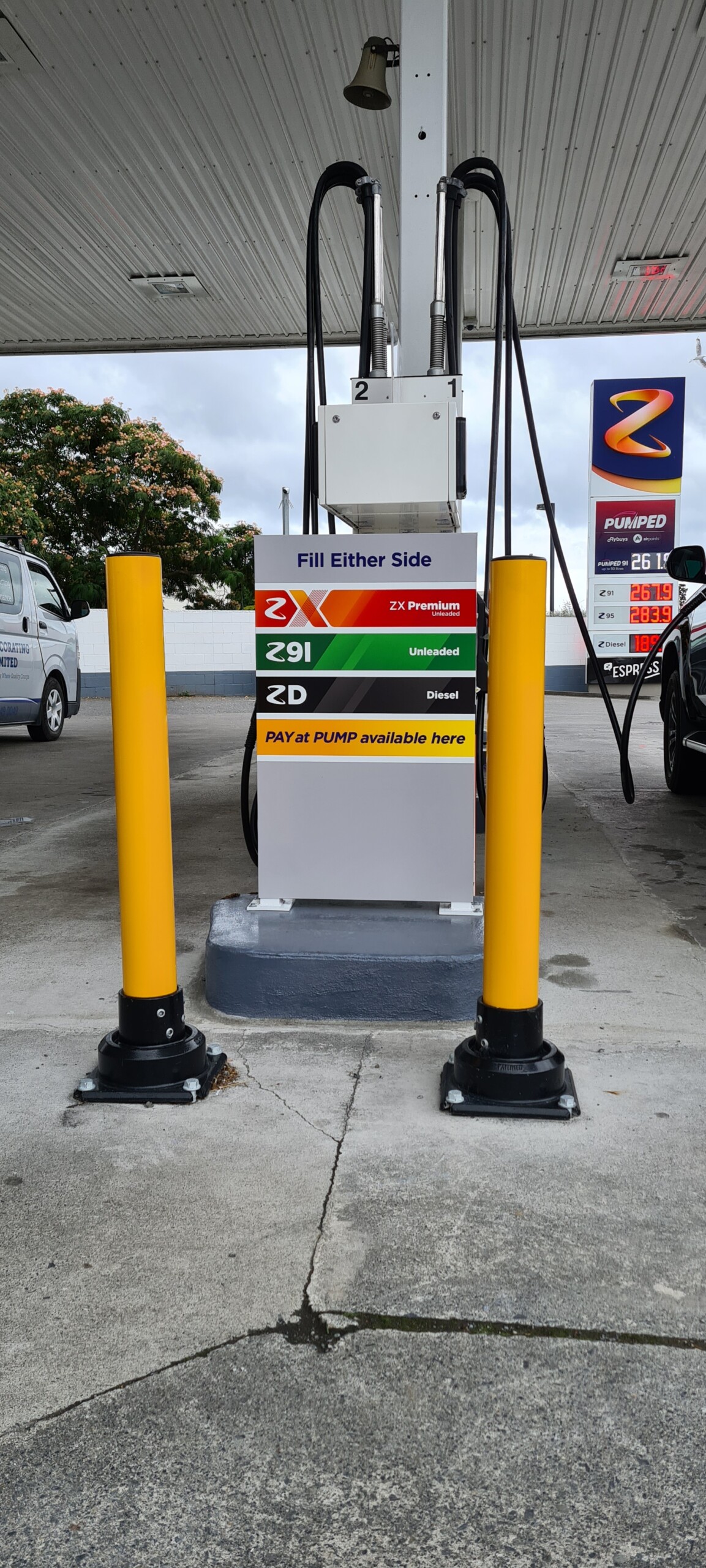

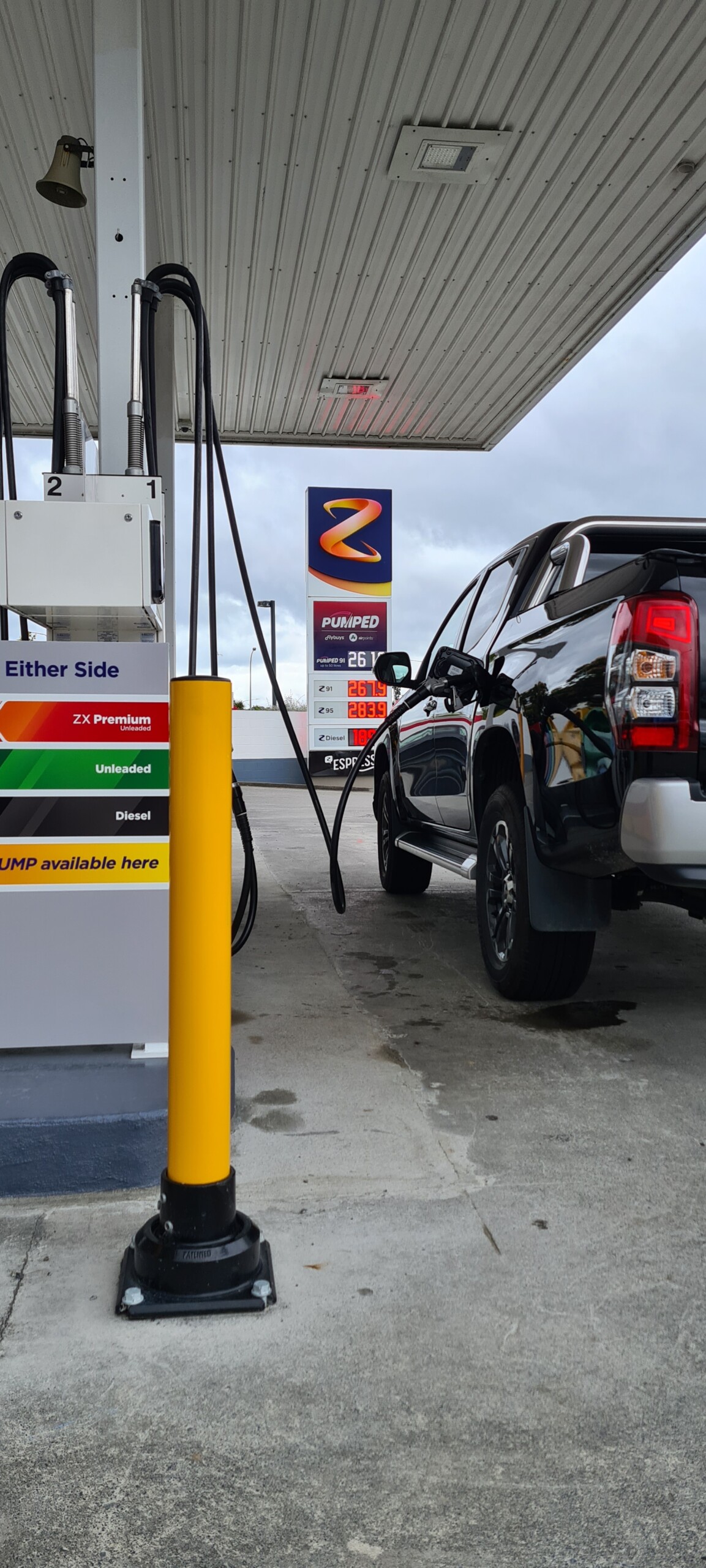

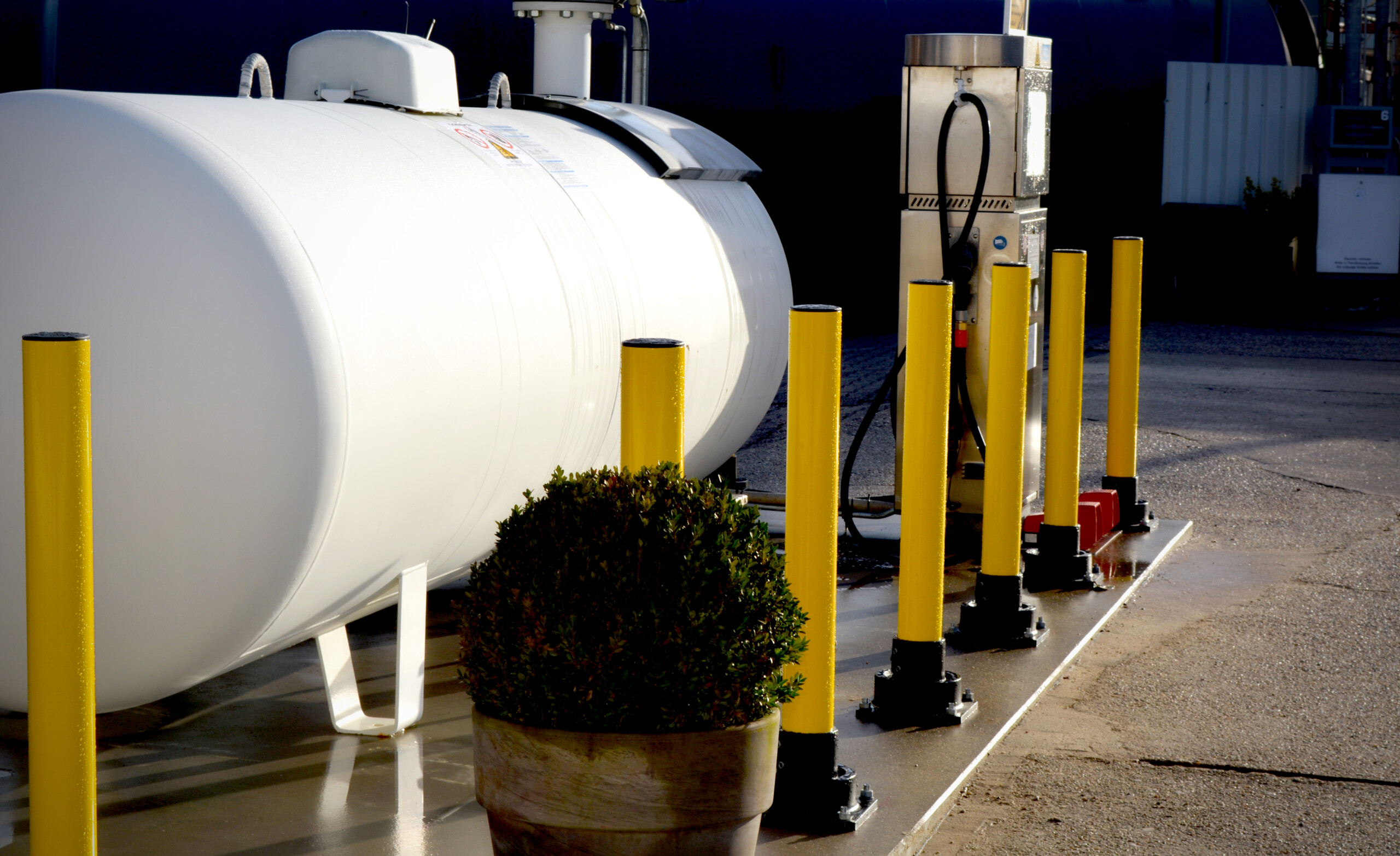

- Used worldwide in EV charger and fuel pump protection applications
- The bollard pipe is undercoated then finished with a durable yellow powder coat and black cap
- Bollard kit comes with everything needed to install (including fixings)
- Made in USA – backed by a 2 year warranty
Testing & Certification
- Stops 4.1T at 8.5 km/h at 150mm impact height without damage
- Impact Rating: 10.2 kJ | 176.9 kN

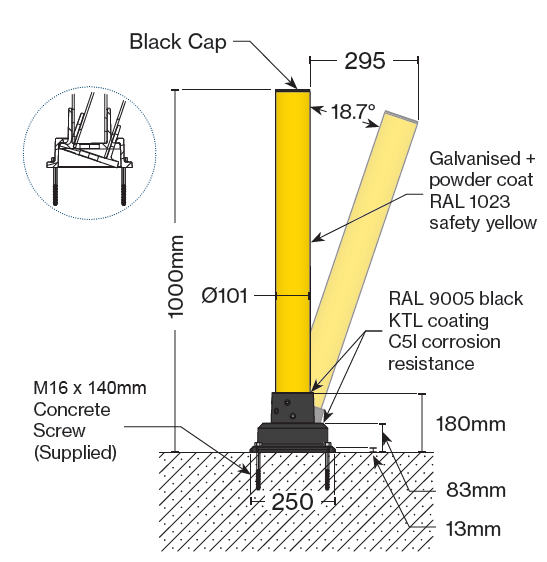

Technical Specifications
- Diameter: 101.9 mm (5mm wall)
- Height: 1000mm
- Temperature Rating: -40°C to 70°C
- Colour: RAL 1023 Yellow Pipe on RAL 9005 Black Pedestal
- Pipe Coating: EN-ISO 1461 Galvanised + Polyester Powder Coating
- Base Coating: Environmentally Friendly Water-based KTL Coating + Polyester Powder Coat C51 corrosion resistance
- Set Screws: 5m 16 x 2,00, 8 mm Hex
- Anchor Screws: (M16 x 140 Concrete) x 4
- Cap: Black Plastic
Options
Videos
Spec Sheets
Rating Table
Options
Code
Description
Size (mm)
Finish
1610-026
Slowstop Bollard 101
ø101 x 1000(H)
Galv w/ Yellow Powdercoat
Videos
SlowStop Bollard | Overview
SlowStop Bollard | Impact Test
SlowStop Bollard | Installation Guide
Spec Sheets
Rating Table
FAQs.
How do SlowStop bollards work?
When hit, the energy of the impact is absorbed by an elastomer in the base of the bollard, and slowly released, bouncing back into shape
What applications are these suitable for?
SlowStop bollards are suitable for all applications including factories, carparks and general property protection
What weight and speed can be absorbed?
This varies depending on the diametre of the bollard. Ask us for more info
How far apart should I install the bollards?
We recommend installing your bollards between 1200mm - 1500mm apart to ensure no small vehicles can fit between them. 1200mm is the minimum distance apart they can be installed to ensure access is not restricted.
