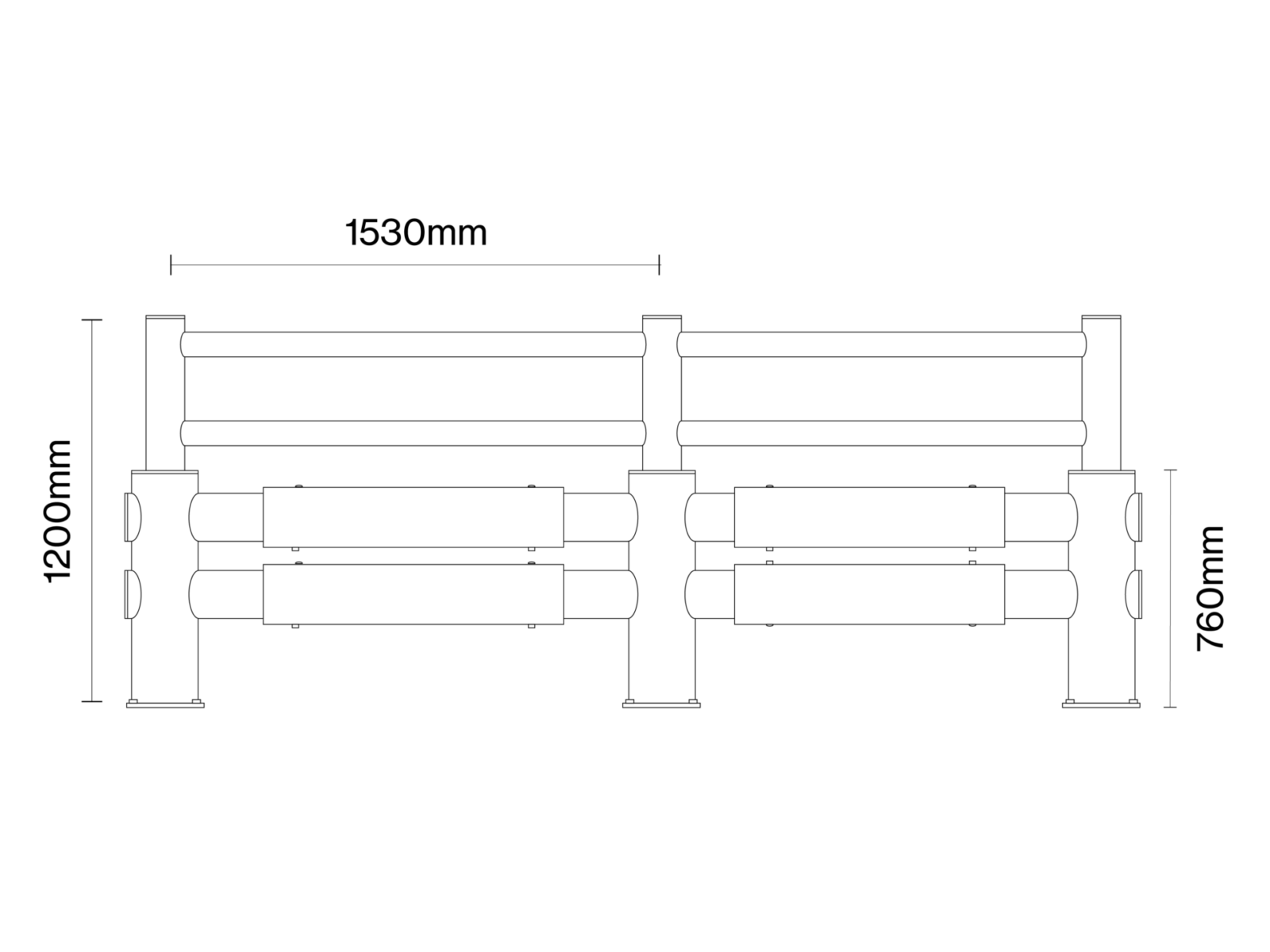

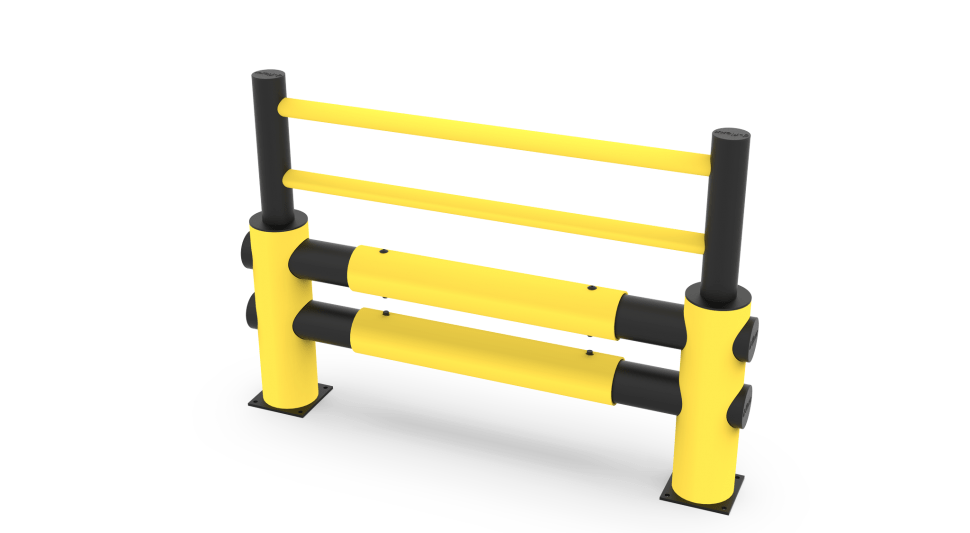

d-flexx Dual Plus Barrier.

CODE:

d-flexx Dual Plus Barrier is a certified, shock-absorbent and highly impact resistant safety barrier.

Double vehicle beams, plus top pedestrian rails make this ideal for high traffic areas where people and larger mass vehicles share the zone.

  • Absorbs energy on impact then returns to its original shape
  • Made from a flexible, impact-resistant PE polymer
  • 100% recyclable, UV-resistant and suitable for indoor and outdoor use
  • Stops 5T at 8.8km/h
  • PAS13 compliant, and tested and certified by German TÃœV NORD (DIN EN 1512) to exceed AS/NZ 1170.1:2002 Section 3.8 (Type G)
  • Can be used in temperature ranges from -40° up to + 50°

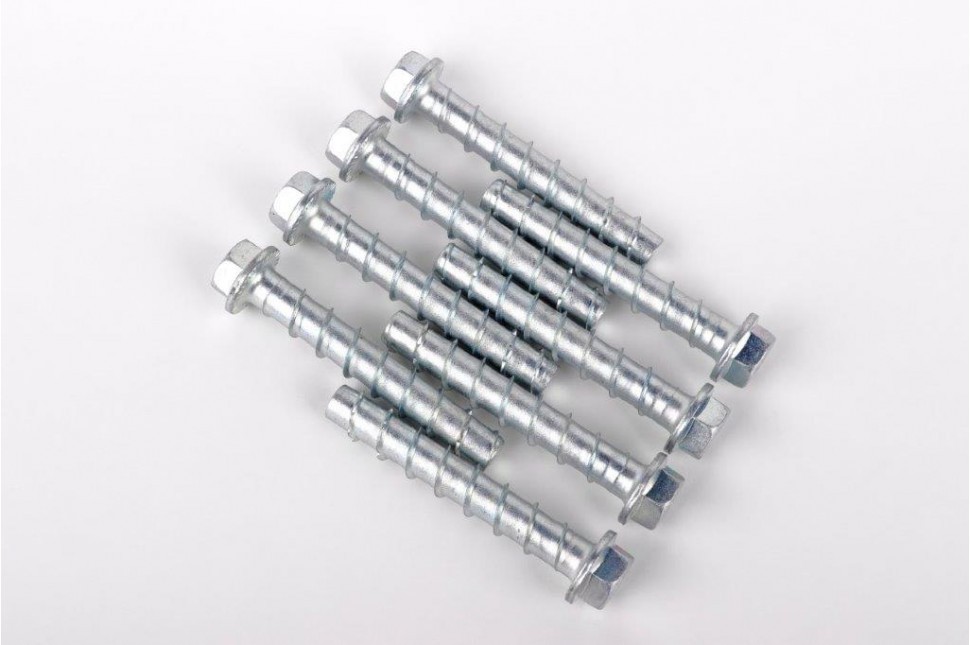

  • Supplied with M12x80mm Anka Screws

View the full d-flexx family and case study here

Options
Videos
Spec Sheets
Rating Table
Options
Code
Description
DFDH
d-flexx Dual Plus
Videos
spacer


d-flexx Barrier | Impact Test

spacer


d-flexx Barrier | Installation Guide

spacer


d-flexx Barrier vs Steel Barrier | Impact Test

Spec Sheets
Title
Size
Download
d-flexx Dual Plus Barrier technical details
435kB
Download
d-flexx Dual Plus Installation Guide
3.9MB
Download
Vanguard-Group-Catalogue-Page-18-DFlexx-Dual-Plus
269kB
Download
d-flexx configurator Video
21.9MB
Download

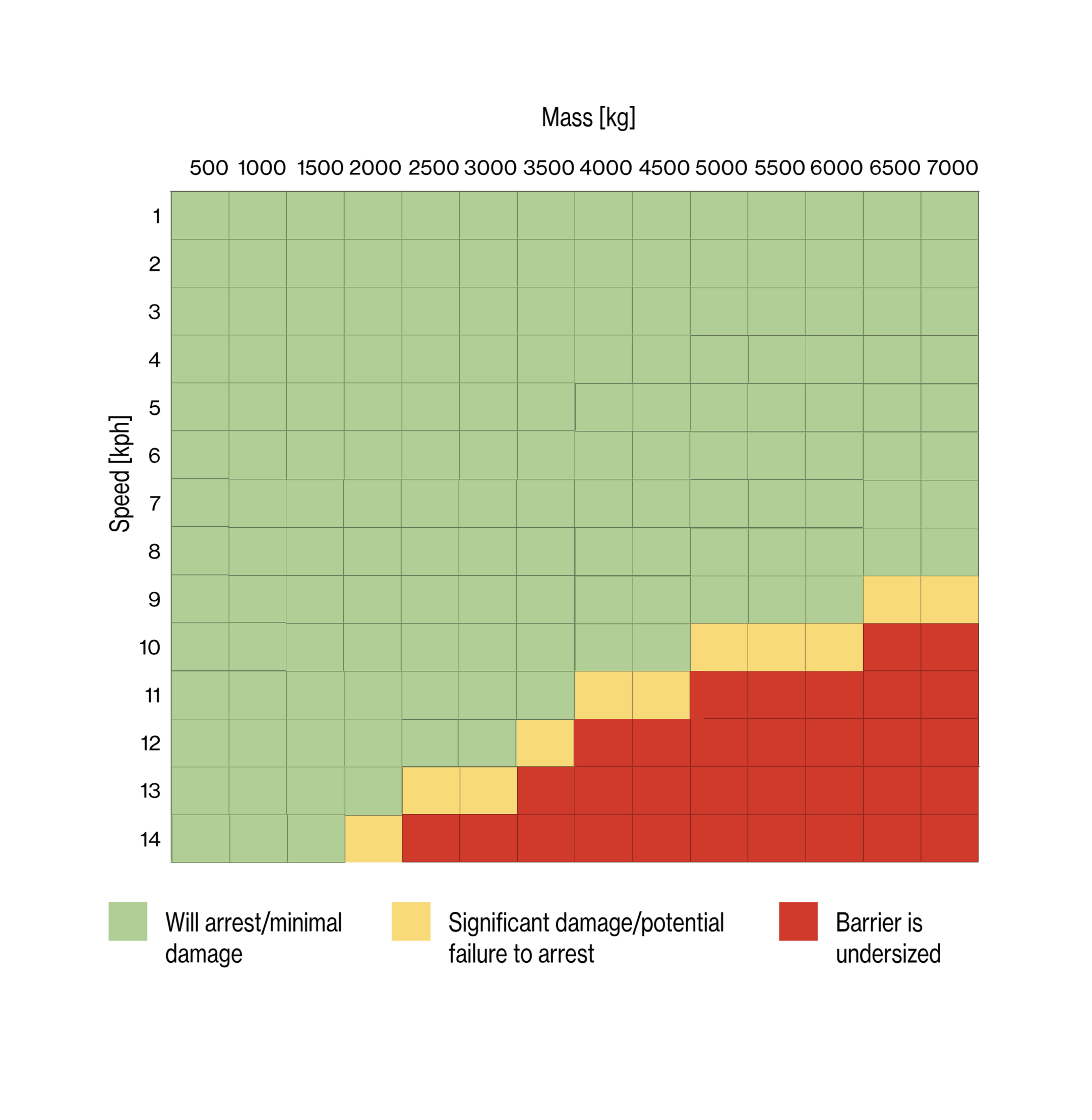

Rating Table

FAQs.

Can the d-flexx Dual Plus Barrier be bolted onto asphalt?

No, the d-flexx Dual Plus Barrier must be bolted onto concrete. If the existing surface is asphalt, you will need to excavate and pour concrete footings to install the barrier onto. Concrete footers need to be a minimum of 25MPA and 400mm wide x 300mm deep. If you would prefer to install individual footers for each post, these need to be a minimum of 400(L) x 400(W) x 300(D)mm per post.
